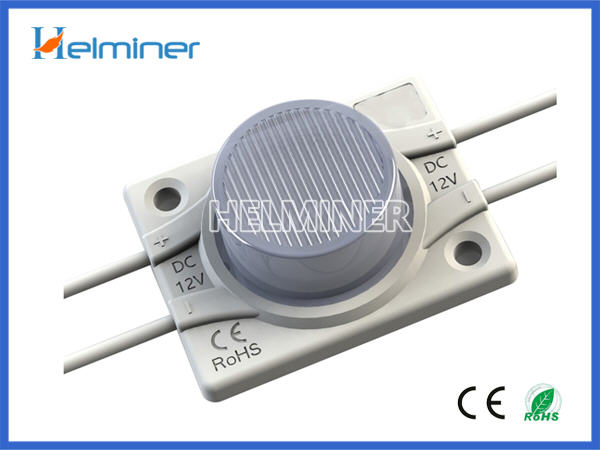

| Model | HM-D01/B |
| View Angle | 45*18° special edge lens |
| Chip | Epistar 2.4W 3030 SMD LED |
| Brightness | 200LM/pcs |
| Voltage | DC12V input voltage |
| Power | 2.4W/pcs |
| Color | 6000-6500k . Pure white color / OEM |
| Waterproof | IP66 abs injection waterproof |
| Dimension | 37.5*29.5*13.7mm |
| Package | 20pcs/group |
| Certification | CE RoHS approved |
| Warranty | 5 Years warranty |
warranty : 5 years
waterproof :IP66
brightness : 200LM/pcs
LED quality : 1LED/pcs
max connection : 20pcs
working temperature : -25° +50°

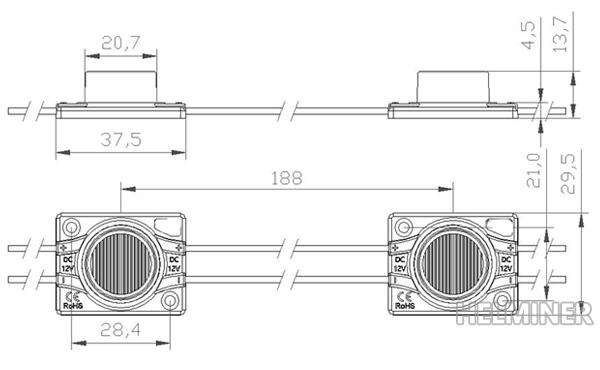

Dimension :

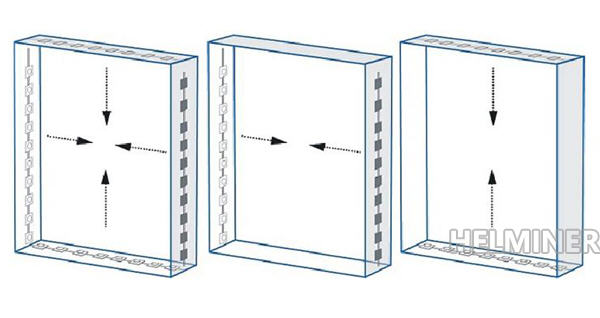

Installation :
