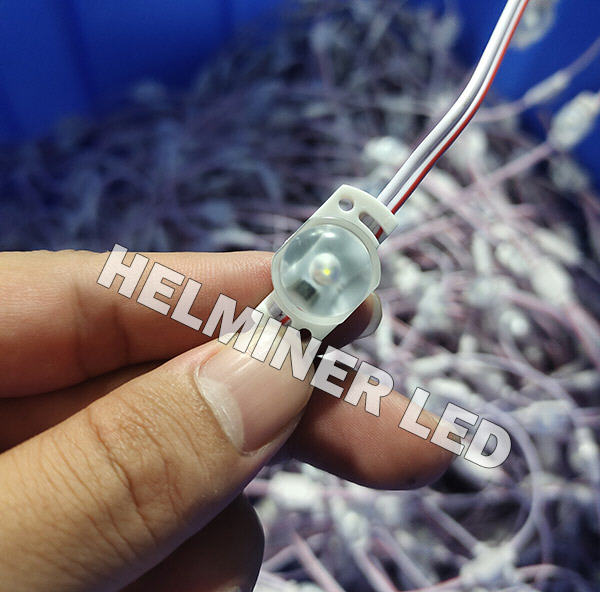

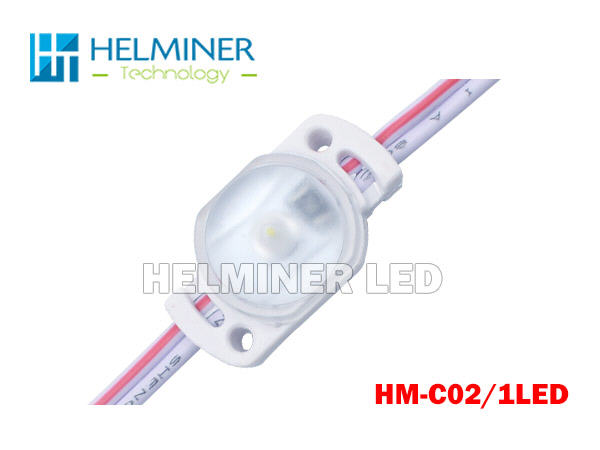

170° diffuse lens classical LED module
Specification
| Model | HM-C02/1LED |
| Voltage | 12v DC |
| LED Qty | 1 LED 0.5W/pcs |
| LM | 110 LM /W |
| Color | White. R. G. B . OEM Yes |
| Waterproof | IP67 ABS injection Waterproof |
| Warranty | 5 Years warranty. MOQ 5000pcs |
-
Application
- OEM Yes, LED Can be Samsung, Philips
- High Efficiency 2835 LED, Up to 110lm/W
- 170º Bat-Wing Optics Design;
- ABS Injection mold process, Waterproof rate: IP67;
- CE&ROHS certification, 5 years Warranty;
- Light decay < 30% after 50,000 hrs
- LED modules for backlighting and light advertising
- LED modules with optics for signage and corporate letters
- LED Modules for Signage
ABS injection waterproof. IP67 Waterproof for outdoor use.
18 AWG Enhance power wires, 1.6mm Double RF-4 PCB Board.

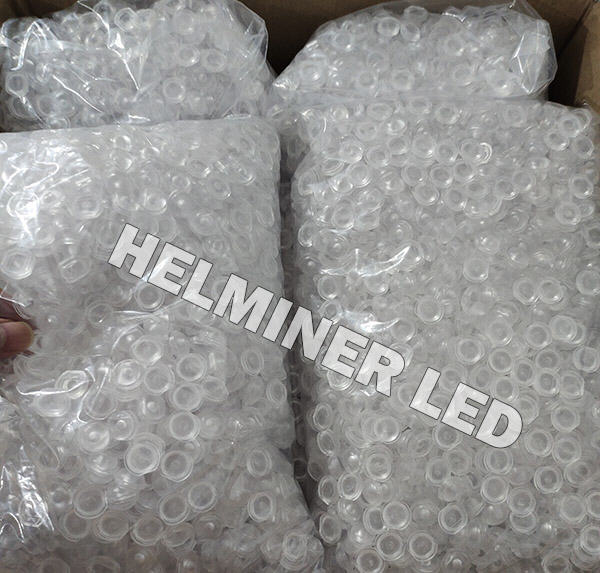

170° diffuse reflection lens

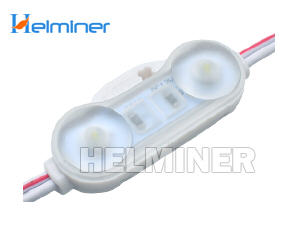

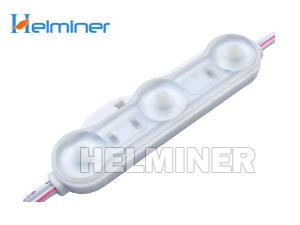

This HM-C02 series LED module, also have 1led, 2led, 4led can be chosen.
Thanks for your interesting, this page still in updating..., More informaiton Please contact our sale manager at any time.
