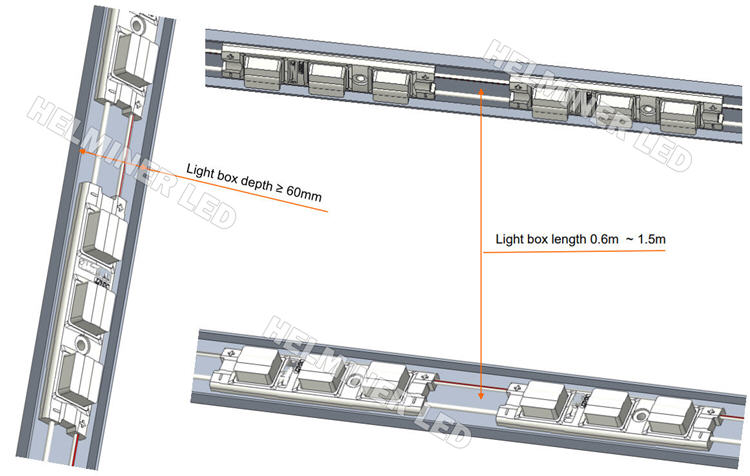

Design for 0.6-1.5 m Height Light Box (Thickness > 60mm)
Specification
| Model | HM-D02/2.4W |
| Voltage | 24V DC |
| Power | 2.4W |
| LM | 312 LM /pcs |
| Dimension | 96*22*11.7mm |
| Color | White. OEM Yes |
| Waterproof | IP67 ABS injection Waterproof |
| Warranty | 7 Years warranty. MOQ 1000pcs |
LED Sign Module | Stellar Edge Series 24V 2.4W 312LM IP67 6500k

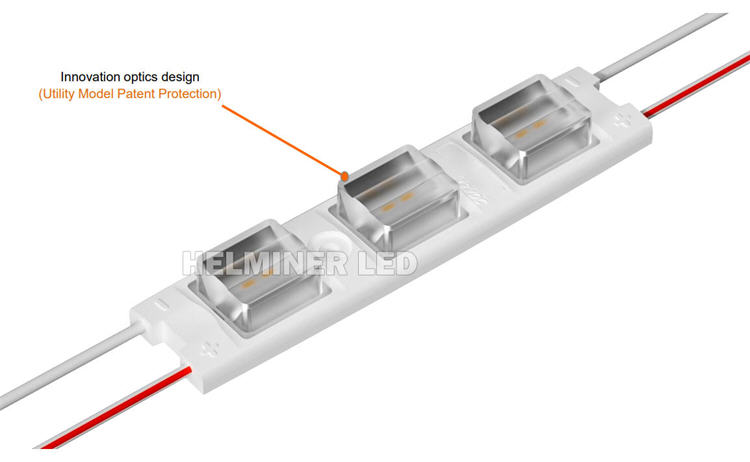

- New innovation optics lens design can get excellent homogeneous requirement (HELMINER LED Invention patent).
- Beam angle 15° x 85°
Sign cabinet/box LED lighting from HELMINER LED is designed for single and double sided and narrow to large box and cloud signs. It’s easy to install and is a great solution for new and retrofit applications.

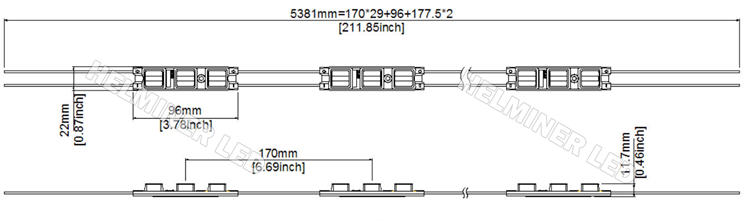

One pack of HM-D02/2.4W consists of 30 modules in a 5.3 metre long chain.
Edge LED For Light Box / Cabinet : Other Option
DC24V 7.2W 800LM /pcs (HM-D02/7.2W)
Use for 1.5m - 4m Large light box
DC24V 2.7W 270LM /pcs (HM-D02/2.7W)
Use for 0.5m - 2m Large light box
LED Sign Edge Light Modules , LED For Light Box Cabinet Box Signage
Thanks for your interesting, this page still in updating..., More informaiton Please contact our sale manager at any time.
