Replace H-LED 358 MODULE
Specification
| Model | HM-D02/2.7W |
| Voltage | 24V DC |
| Power | 2.7W |
| LM | 270 LM /pcs |
| Dimension | 88*31*17mm |
| Color | White. OEM Yes |
| Waterproof | IP67 ABS injection Waterproof |
| Warranty | 7 Years warranty. MOQ 500pcs |
Replace H-LED 358 MODULE , With our New 2.7W 270LM Edge LED Module

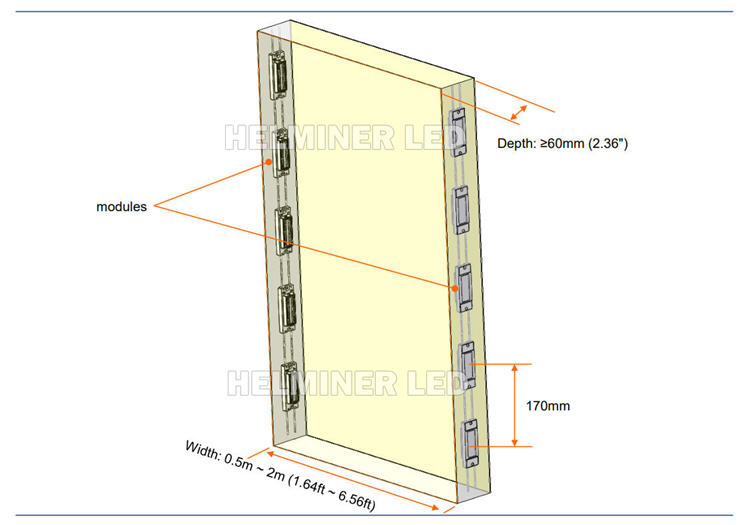

Design for 0.5-2m Height Light Box (Thickness > 60mm)

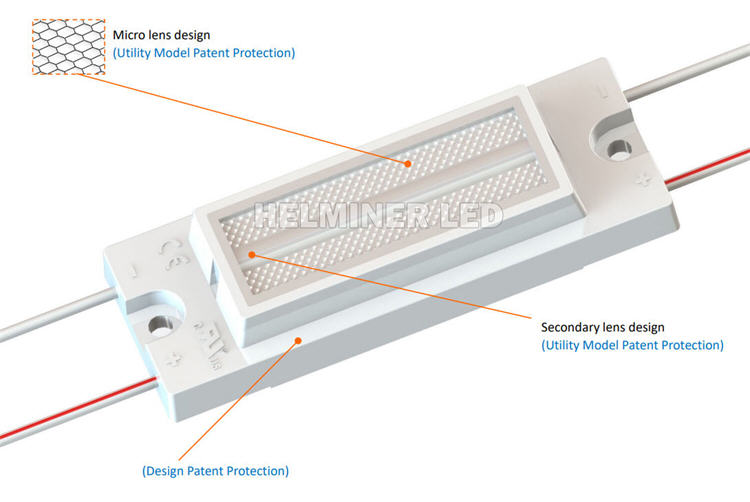

- Innovation optics design can get excellent homogeneous requirement – 0.5m ~ 2m light box
- Powered by OSRAM LED

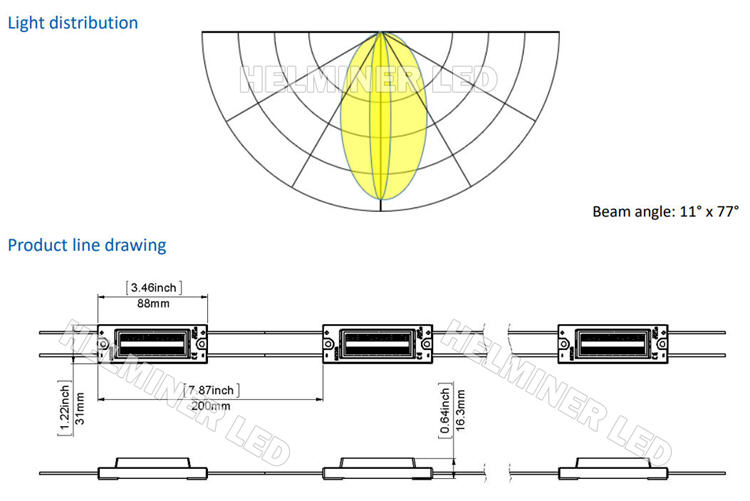

- Beam angle 11° x 77°
As we know H-LED 358 is the best and cost effective LED edge
lighting Solution For slim and medium size of box sign application
So we launched similar H-LED 3528 LED Module , Higher brightness, but more affordable price.
DC24V 2.7W 270LM H-LED 358 LED Module , best and cost effective LED edge lighting Solution.
For slim and medium size of box sign application
Edge LED For Light Box / Cabinet : Other Option
DC24V 7.2W 800LM /pcs (HM-D02/7.2W)
Use for 1.5m - 4m Large light box
DC24V 2.7W 270LM /pcs (HM-D02/2.4W)
Use for 0.6m - 1.5m Large light box
Same Hyundai H-LED 358 Edge LED Module For Single / Double Side Light Box
Thanks for your interesting, this page still in updating..., More informaiton Please contact our sale manager at any time.
