NewSMART Wide angle led module , Similar Sloan VL4 LED Module ,
LED module 12V 1W, 122lm, cold white 6500K, 170°, IP67,

April, 2023 by Frank

Prism modules feature a completely new perspective on LED technology which maximises light output to achieve brighter and more efficient lighting for both channel letters and light boxes.

Email : led.hgy@gmail.com

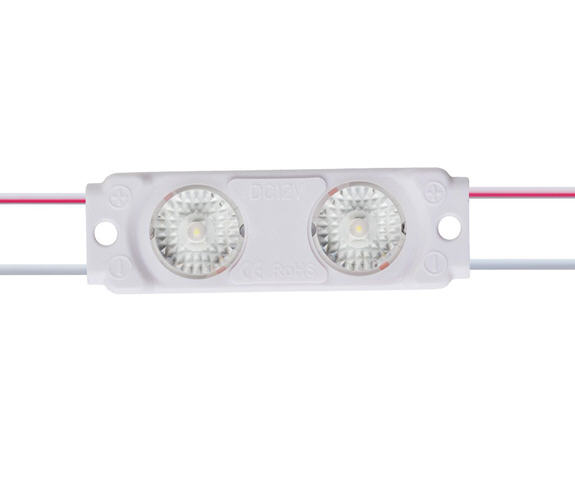

Wide Angle VL4 LED Module

NEWSMART Wide angle led module , VL4 Prism LED Module ,LED module 12V 1W, 122lm, cold white 6500K, 170°, IP67,

FEATURES

  • 7 Years warranty
  • LED by Lumileds , 120 LM /W High efficacy
  • Prism optical lens,
  • Aluminum pcb design
  • Low power consumption, even light, energy-saving, easy installation
  • Color : 3000K / 4000K / 6500K / 7000K / Red. Green. Blue
  • Email our sale manager right now : led.hgy@gmail.com
  • LED module 12V 1W, 122lm, cold white 6500K, 170°, IP67,
SPECIFICATIONS

TECHNICAL INFORMATION & LIGHT DISTRIBUTION GRAPH

LED Type Lumileds 2835
Input 12V DC, 24V DC
Power 1W
Light output 120 LM /W
Beam angle PRISM 175°
Available colors Red , Green , Blue , White
Dimensions 54*17.5*7mm
Price US $0.23
Email LED.HGY@gmail.com

Light distribution graph

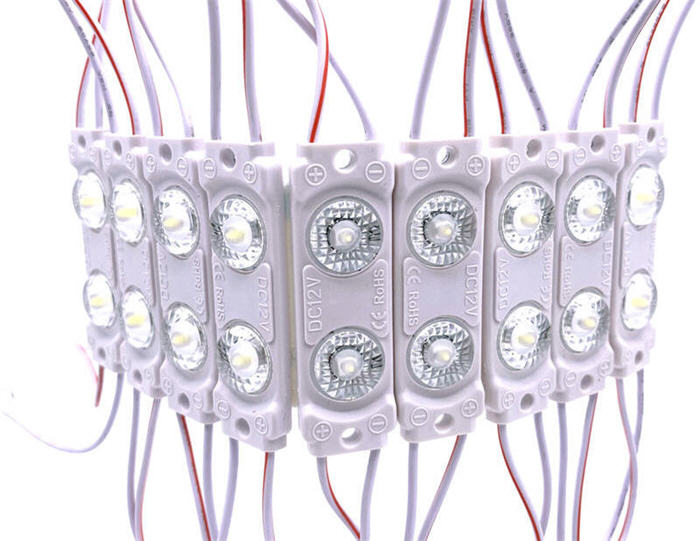

Channel Letter Modules ， VL4 LED MODULE, New Smart Wide angle led module

2023 New design Smart A wide-angle LED module typically refers to an assembly that incorporates multiple wide-angle LEDs into a single unit. These modules are designed to provide a broad spread of light and are commonly used in various lighting applications.

SloanLED VL4 White 6500K (2 Lens/ 2 LED) ,Channel Letter Sign Solutions

  1. Prism Lens with 175°wide beam angle, more even emitting, 7 years warranty
  2. High quality ABS material, injection molding process
  3. DC 12v, DC 24v low voltage drive, very safe, low power consumption, long life
  4. 3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free

Wide angle led module, NewSmart LED Module, Prism LED Module, VL4 LED Module

Facebook
+86-18576786605
+86-0755-23055223
Miss Emma   :   emma.helminer@gmail.com
Other similar Prism LED Modoule
Prism LED module , LED module for advertising, 12V 0.5W, 63lm, neutral white 4000K, 175°, IP67,

Prism LED module 12V 0.5W, 63lm, cold white 6500K, 175°, IP67,

HM-C05/1LED
US $ 0.16

NEWSMART Wide angle led module, Prism VL4 LED Module

Prism LED module 12V 1.5W, 186lm, cold white 6500K, 175, IP67

HM-C05/3LED
US $ 0.27

High light efficiency LED module 12Vdc with lens 160° neutral white, MINI

160LM /W MINI LED module 12Vdc with lens 160° , 0.36W , 58LM ,

HM-A01/C
US $ 0.16

LED module 12V 0.96W, RGBW, 0.72W RGB, 160°, IP65,

LED module 12V 0.96W, RGBW, (0.72W, RGB), 160°, IP65,

HM-B01
US $ 0.4

Similar VL4 Wide angle LED Module is the next generation, everyday LED lighting solution for illuminating standard face-lit channel letters that shatter expectations with a 175° radiation pattern for wide, uniform illumination, class-leading light output and efficacy

NewSmart LED Module 1.5W Prism VL4 LED Module
