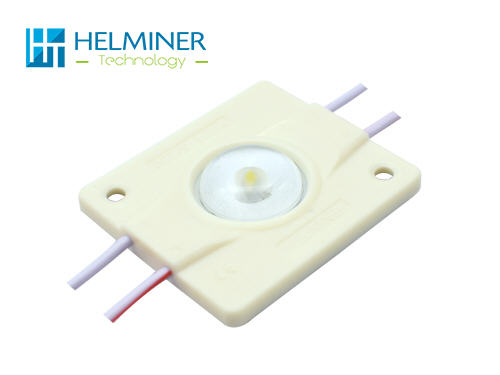

Prism LED Module
Specification
| Model | HM-D05/D |
| Voltage | 12v DC |
| Power | 145lm/pcs 1.44w |
| View Angle | 170° |
| Color | 6500K | 4000K | 3000k |
| Certification | CE RoHS |
| Waterproof | KOREAN LG ABS Fire-proof material IP67 Waterproof |
| MOQ | 5000PCS |
| Warranty | 5 Years warranty. |
Paramters
PRISM LED module for single-sided light boxes, 12V | 1.2W | 6500K
- Direct China PRISM LED Module OEM Manufacturer.
- 5 Years warranty with best price.
- LOW Minimum order quantity : 5000 - 10000pcs
- OEM Service , LED chip can be OSRAM / LUMILEDS / EPISTAR
20pcs / Gorup . Each LED can be cut !
- 2020 New Updating :
- Lens : PMMA 170° lens. Not PC lens
- Drive can be constant current drive / constant voltage drive
- LED Source by Epistar SMD3030 Big chips / OSRAM 2835 Chips
- Color : normal is 6500k, 3000k, 4000k, also can be chosen.
This page still in updating now ...
Best for 80-250mm single light box
Minimum modules positioning:
| Box thickness | A | B | C | |
|---|---|---|---|---|
| 80 | 130 | 130 | 40 |  |
| 100 | 200 | 200 | 45 | |
| 150 | 230 | 300 | 80 | |
| 200 | 230 | 350 | 100 | |
| 250 | 230 | 350 | 130 |
High Power Back-Lit series LED Module For Single Light Box
