Korean LG ABS + PMMA Lens

 1-5515 POWER , Moduli LED per bifacciali


Model HM-D01/E
Voltage 12v DC
Drive Constant current drive
Epistar 3030 LED 3W 240-260LM/pcs
PMMA lens 15*55°
Color 6500K-7000K White Color | OEM Yes (3000K, 4000K)

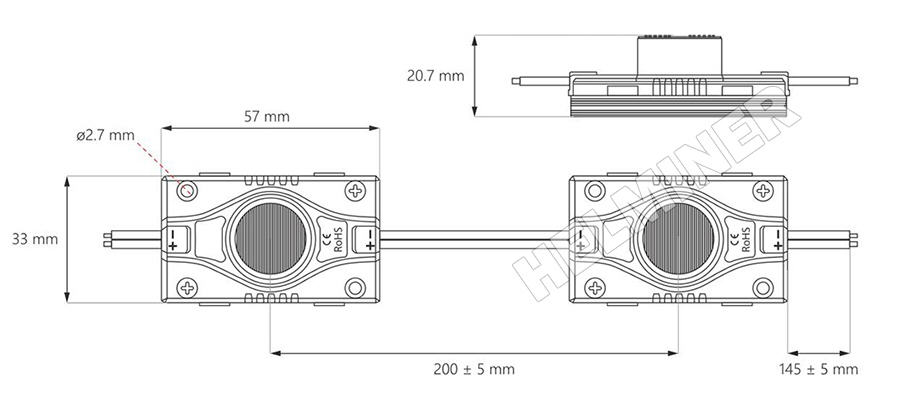

Dimension 57*33*20.7mm
Warranty 5 Years warranty. MOQ 3000pcs
Detail Information
Helminer LED : China LED Module OEM Manufacturer | Best Price , Low minimum order quantity

  Modulo LED per grandi insegne bifacciali

1-5515 POWER 3W Moduli LED per bifacciali, 2022 Brand New Design With Super Brightness

LED Module For Double / Single light box side installion

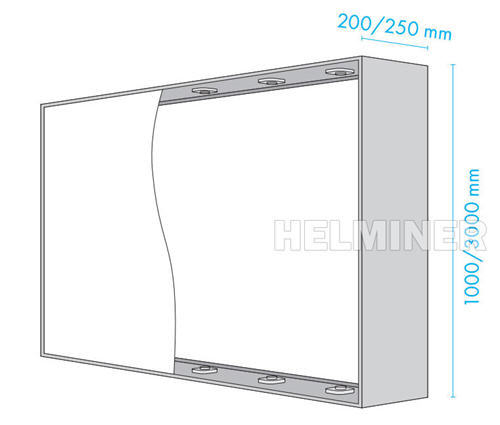

best for one-sded lightboxes (10-16 cm depth) and two-sided lightboxes (12-20 cm depth)
 HM35LADPN - Hitechled , Helminer LED , INSEGNE LED

Illuminare cassonetti bifacciali, totem,pensiline e ambienti esterni; faretto spot

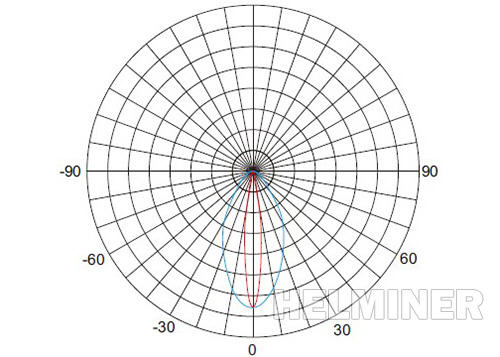

LED Module Light distribution:
 Sistemi a LED Modulari , Moduli LED , HM35LADPN

Model Gross Weight Chain Bag Package Weight Note
HM-D01/E 0.8kg 20pcs/group 40pcs/bag 360pcs/box 15kg *
  • constant current stabilization
  • for edge-lit applications with up to 3.5 m throw
  • side installations
  • for single- and double-sided lightboxes
  • built-in heat sink

Email : led.hgy@gmail.com Facebook Instagram

This series Edge LED Module also have another option , for Various Double Light Box
LED module for double-sided signage , LED bars for single-sided signage
