175° Prism LED Module
Specification
| Model | HM-C05 |
| Voltage | 12V DC ( 24V DC) |

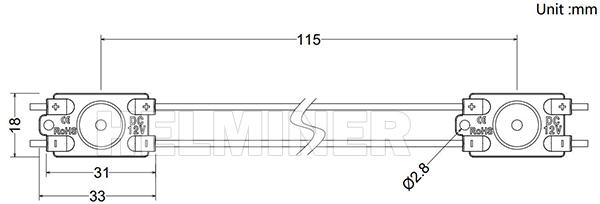

| 1LED | 0.5W 55LM 33x18x6.5mm |

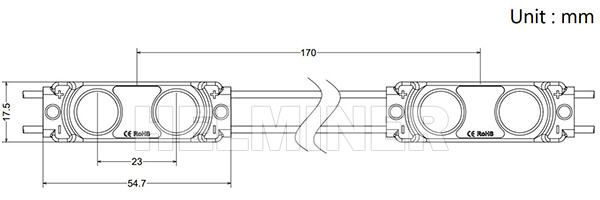

| 2LED | 1W 110LM 55x18x6.5mm |

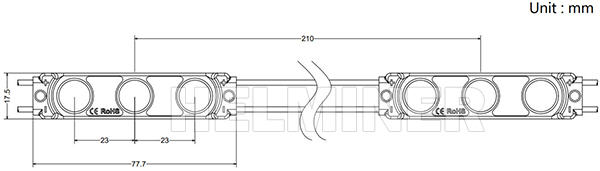

| 3LED | 1.5W 165LM 78x18x6.5mm |

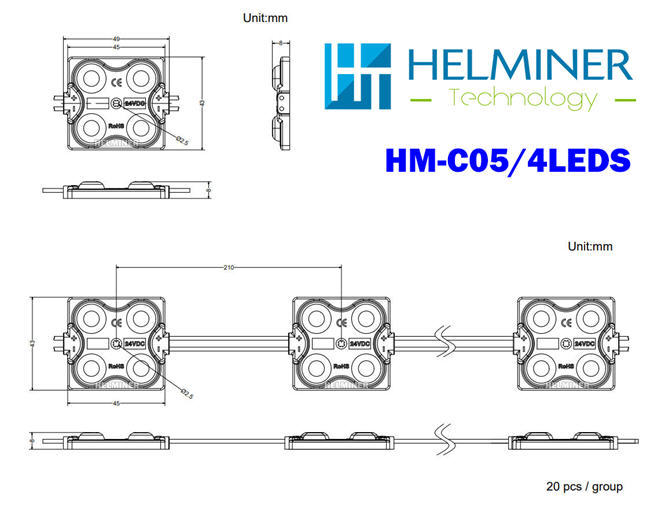

| 4LED | 2W 220LM 102x19x8mm |
| Warranty | 5 Years warranty. MOQ 5000pcs |
Specifications
PRISM LED MODULES. VL4 Everyday 12 VDC LED lighting solution for standard channel letters
- Prism optical lens,
- Lumileds LED 2835
Helminer HMC05 channel letter LED lighting products are designed for a wide range of channel letter applications, including face and halo lit, shallow to deep can depths, and routed acrylic letters.
VL4 Prism LENS led module ,Everyday 12 VDC LED lighting solution for standard channel letters
VL4 LED Module Everyday 12 VDC LED lighting solution for channel letters
