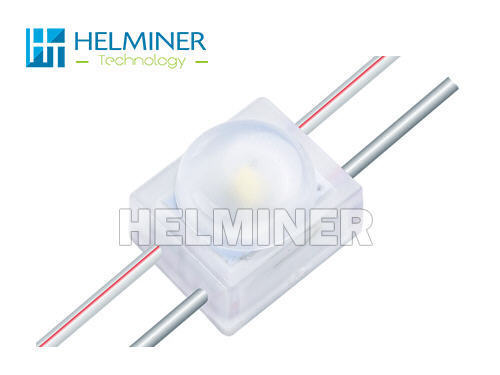

Ultra Mini Small LED Module

IP67 0.36W 40LM 1 LED Module


Model HM-A01/C
Voltage 12v DC
Power 0.36w/pcs
Brightness 40LM/pcs
View Angle 160°
Color 6500K white color
Certification CE RoHS
Waterproof IP67 ABS Fire-proof material
OEM Yes . MOQ 1 Box 5000pcs
Warranty 5 Years warranty. CE RoHs approval
1LED Mini small LED module , IP67 0.36w 40lm /pcs , Use for Tiny Small 3D letter back lighting.

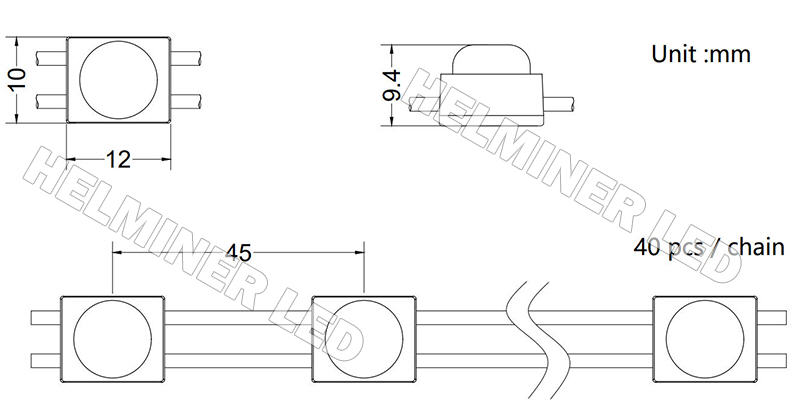

Normal distance between 2LED module is 33mm ± 2mm
tiny led module, 1 LED module, small led module

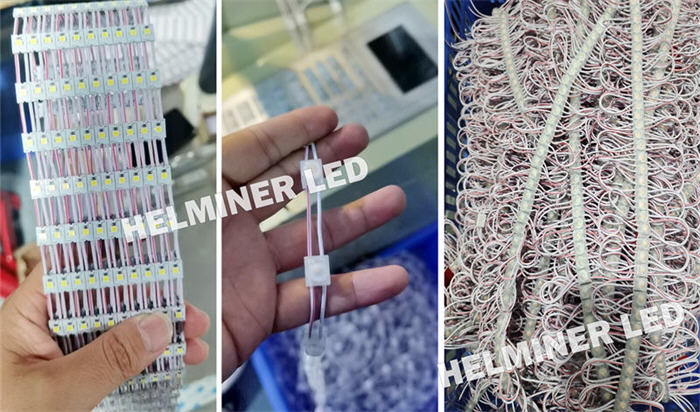

Product real shot chart :
40pcs/group. each LED can be cut. 3M backt-tape easy to install

Adopt Epistar SMD2835 0.5w Big chip, Each LED module can reach 40LM/pcs,
Super brightness, Long life time, 160° lens, 5 Years warranty, Best Factory wholesale price.

Epistar 0.5w 2835 Big Chip , CE RoHS approval, 5 Years warranty . 160°lens High Brightness.
  • Features :
  • 1. Adopted SMD2835, high lumen LED, 35-40 LM/led
  • 2. ABS injection, viewing angle 160°.
  • 3. Fire rating to UL94V-0.
  • 4. Constant voltage technology, stable performance.
  • 5. High light efficient, long life span 50,000 hours.
  • 6. IP67 waterproof for outdoor use.

High Quality DC 12V Injection Module : 2835 1 LED Module 0.36W IP67 Waterproof LED for Mini Small Advertising Signs

Miss Emma   :   emma.helminer@gmail.com

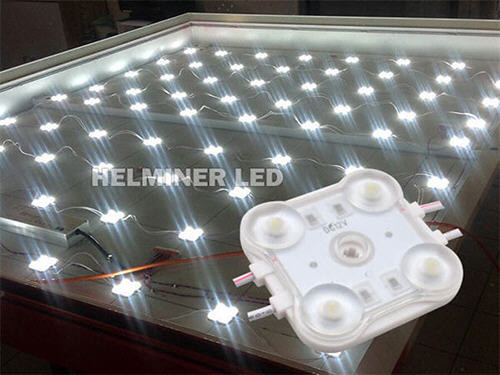

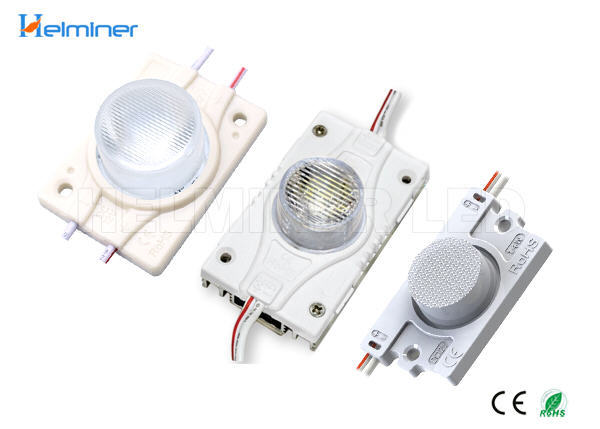

Here is our other hot selling LED module

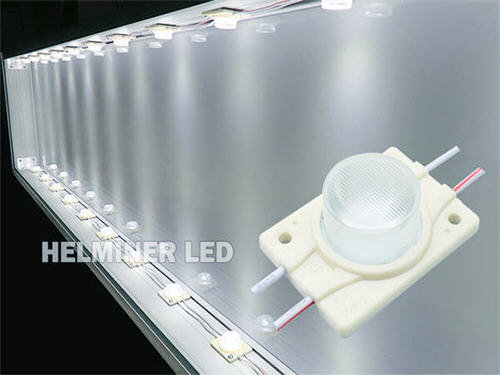

  • Edge LED Module For Double light box
  • 175° 160 LM/w, 110 LM/w, 2022 Innovation LED Modules
  • Email our sale manager right now : Emma.Helminer@gmail.com

Hot Selling LEDs

 LED-Technologie, Neon-Technik, Lichtwerbung, Lichtdesign
Special for Double Light Box
Edge LED Module
1led module, 2led module, 3led module, 4led module,  Moduły led do reklam

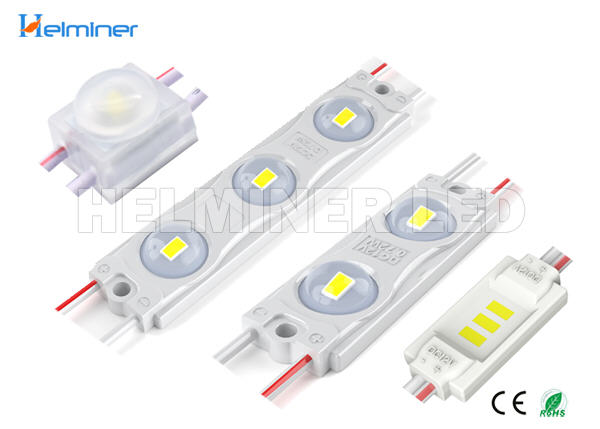

Regular 2/3LED Module,Mini...
