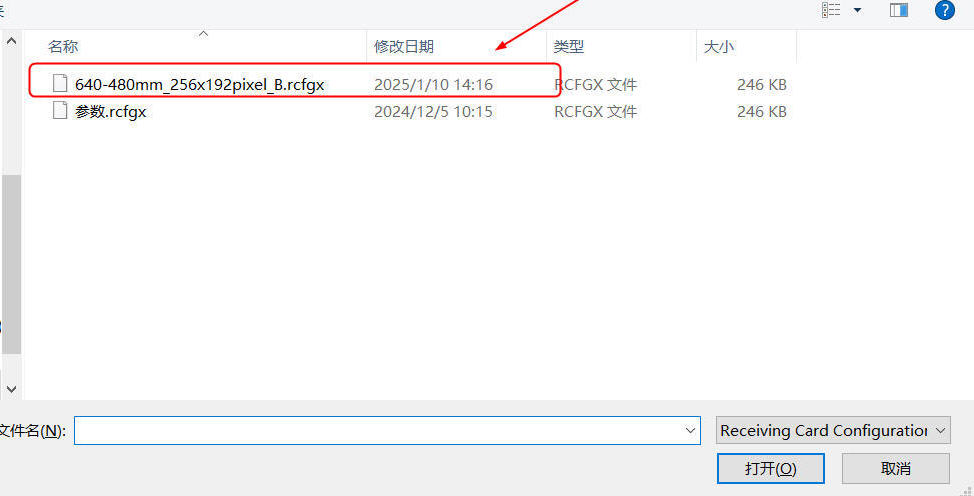

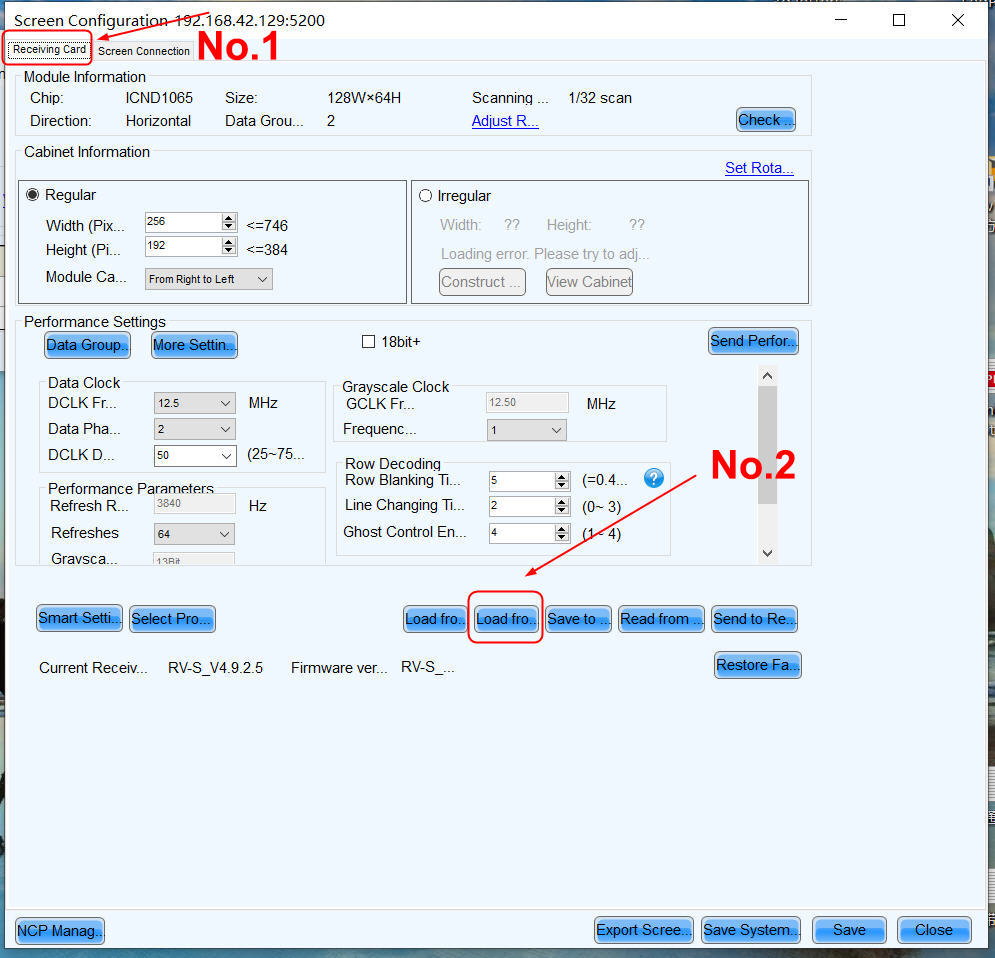

Select the local import configuration file.

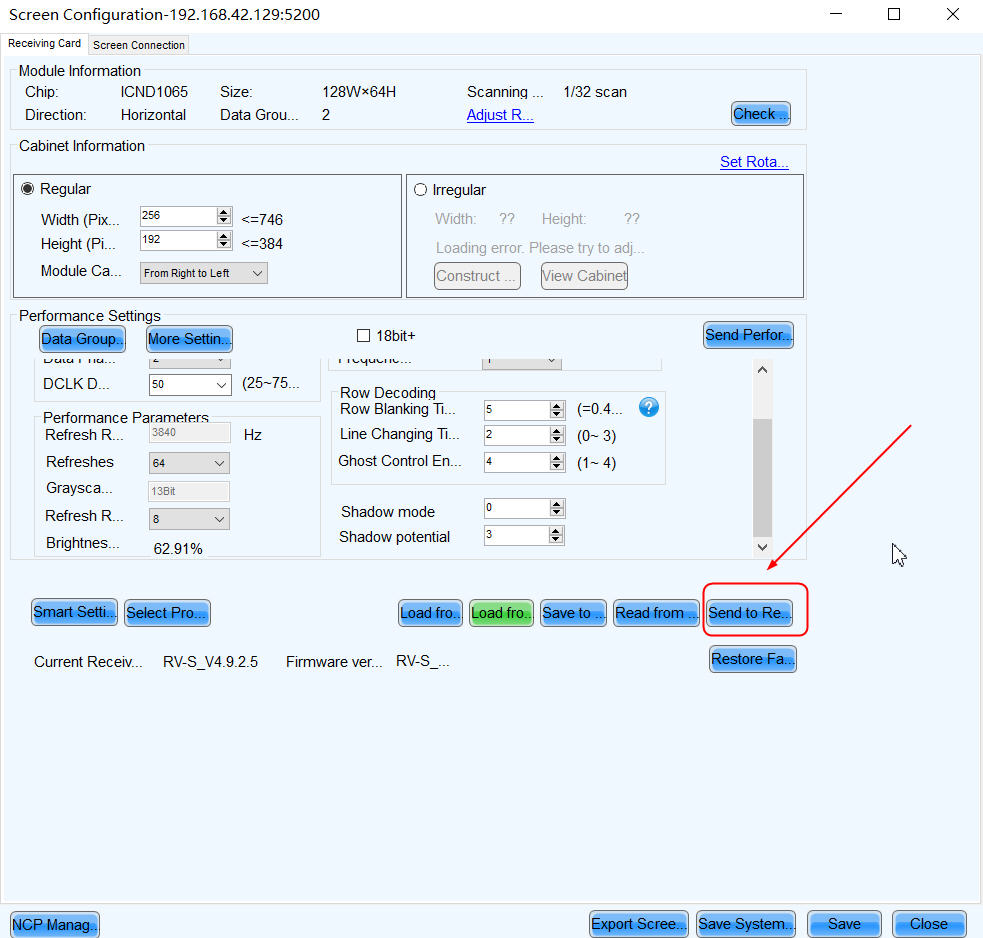

After importing the configuration file, click the SEND button

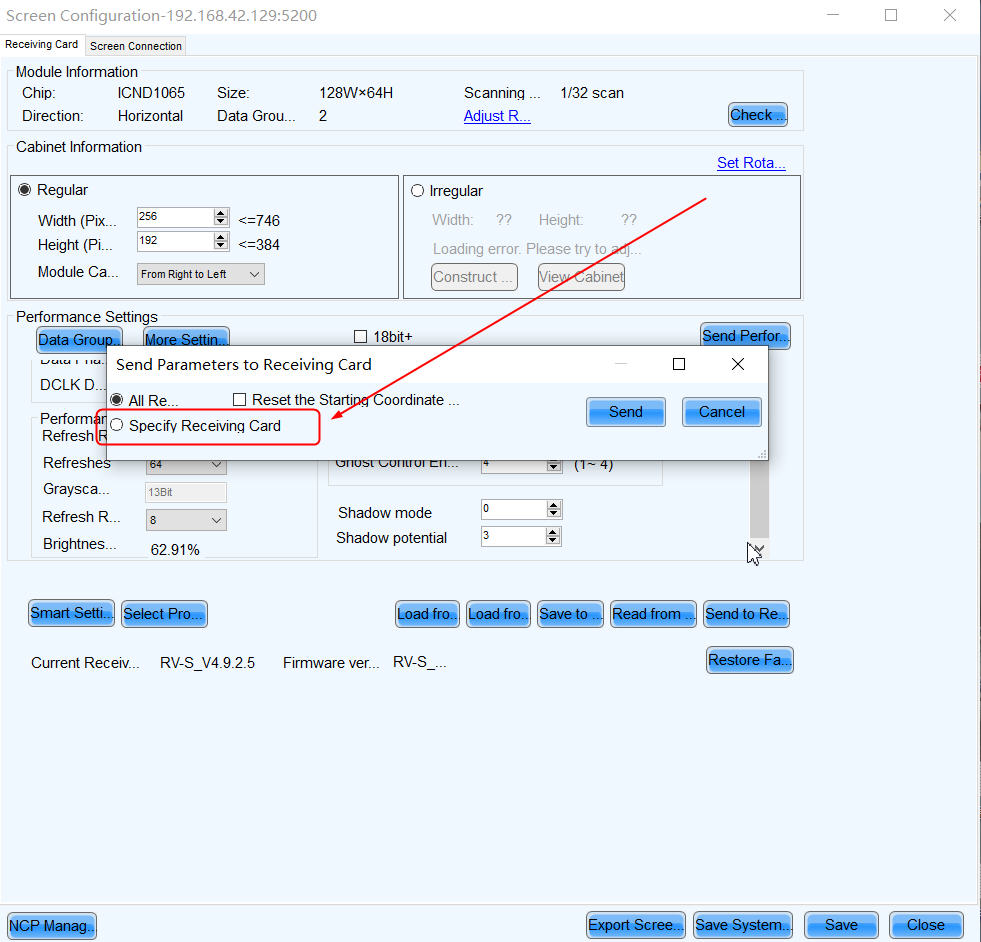

You can select all receiving cards or specify a receiving card.
In order to test the program, this example uses a specified receiving card as an example.

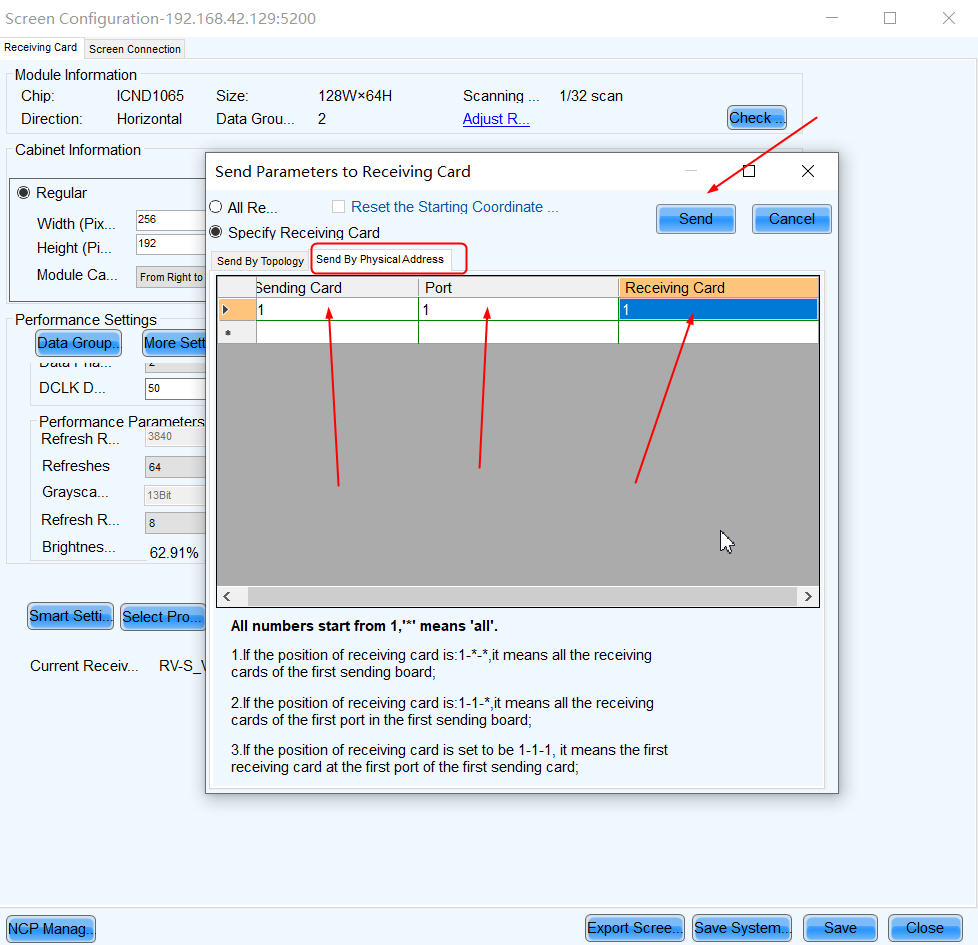

Select : Send by Physical Address :
Input : 1 1 1
Refers to the first output port controlled by the first receiving card

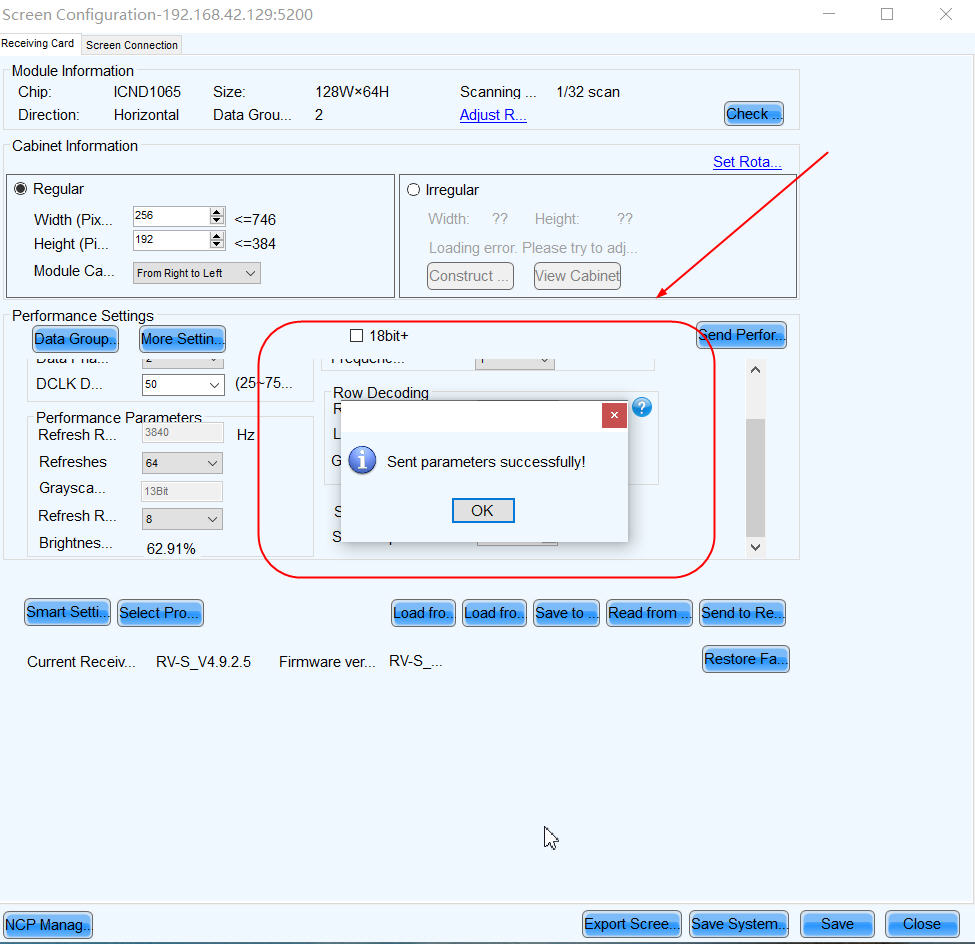

Display configuration file sent successfully

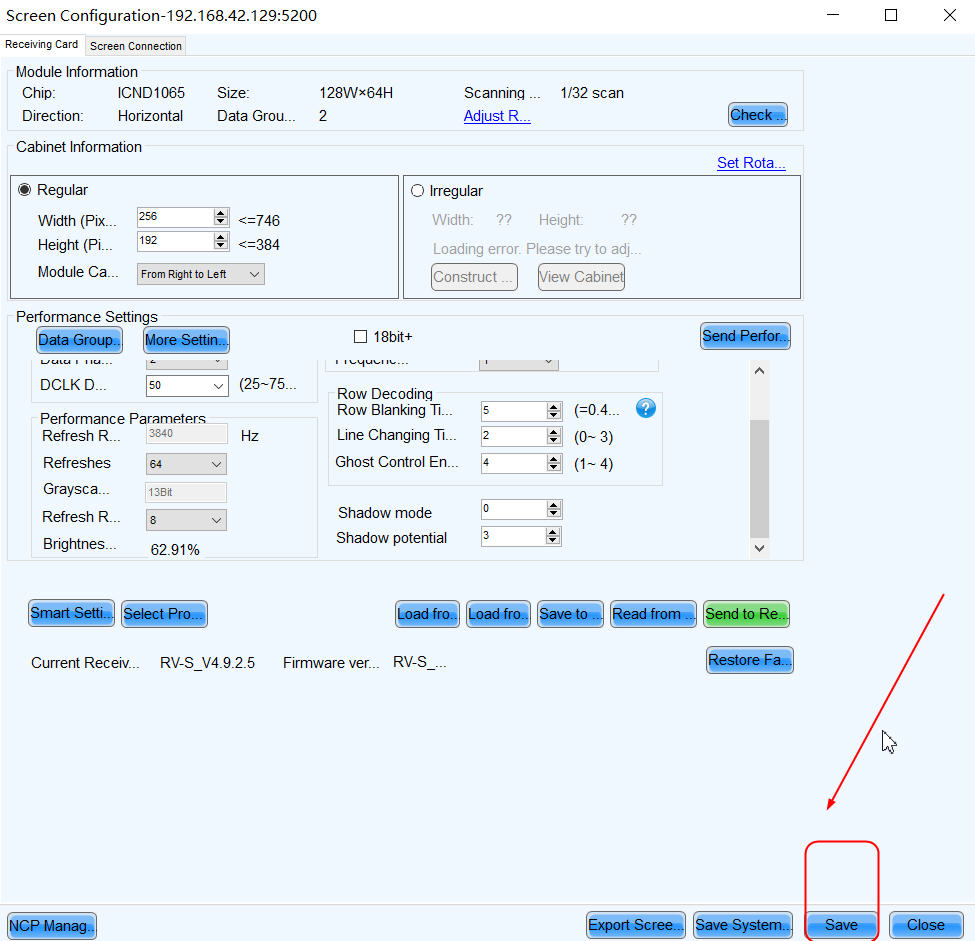

Permanently save the configuration file to the receiving card
