What's in the sample box

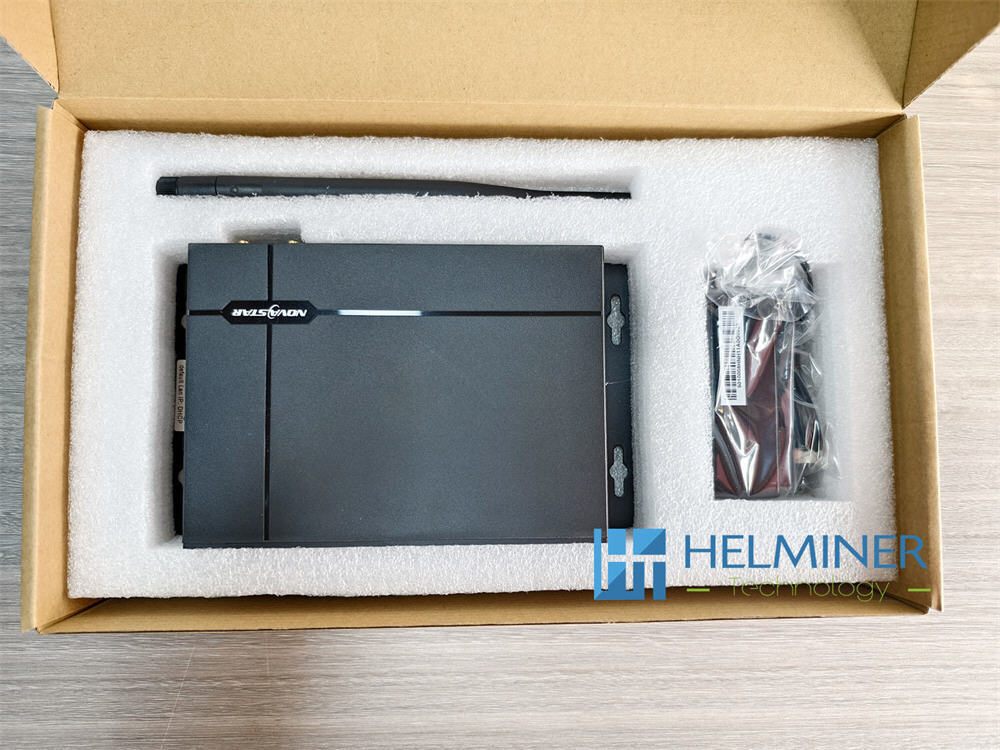

TB2 LED WALL Controller
1pcs led wall sample box controller TB2

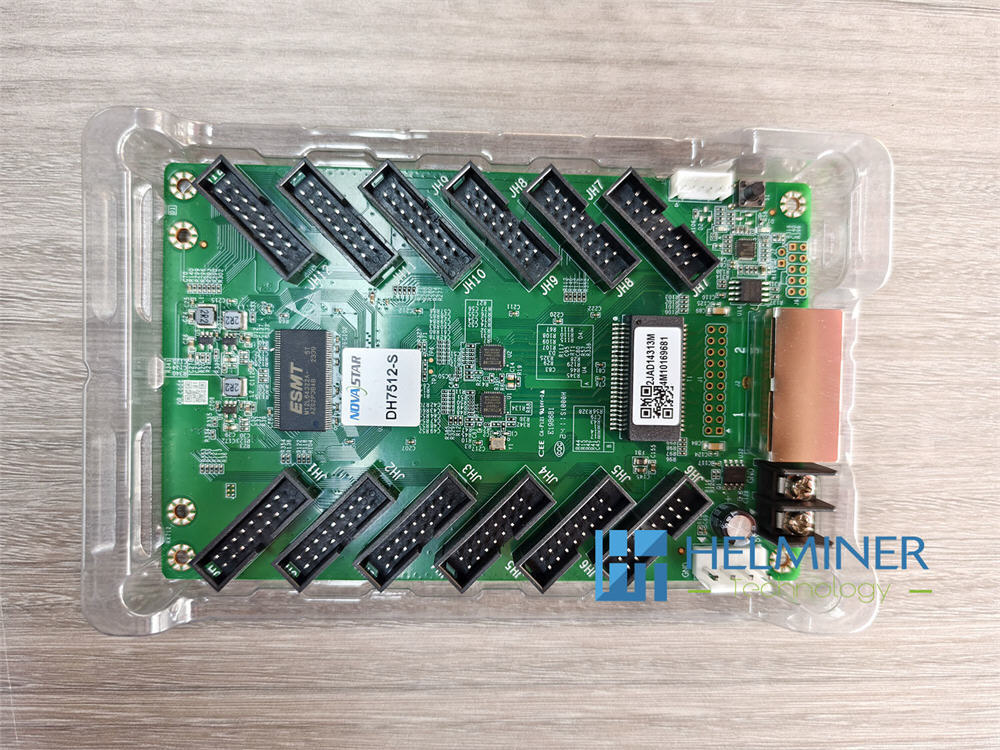

Data Receiver card
5pcs NOVASTAR DH7512-S

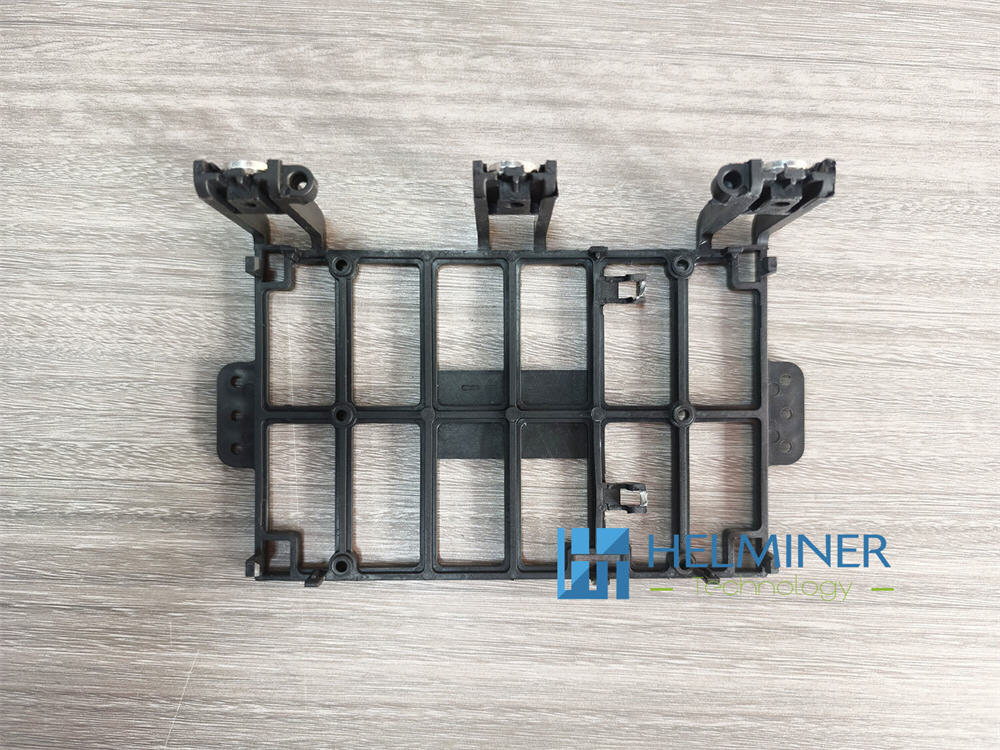

Receiver card holder
5pcs NOVASTAR 7512-S Reciever Card Holder

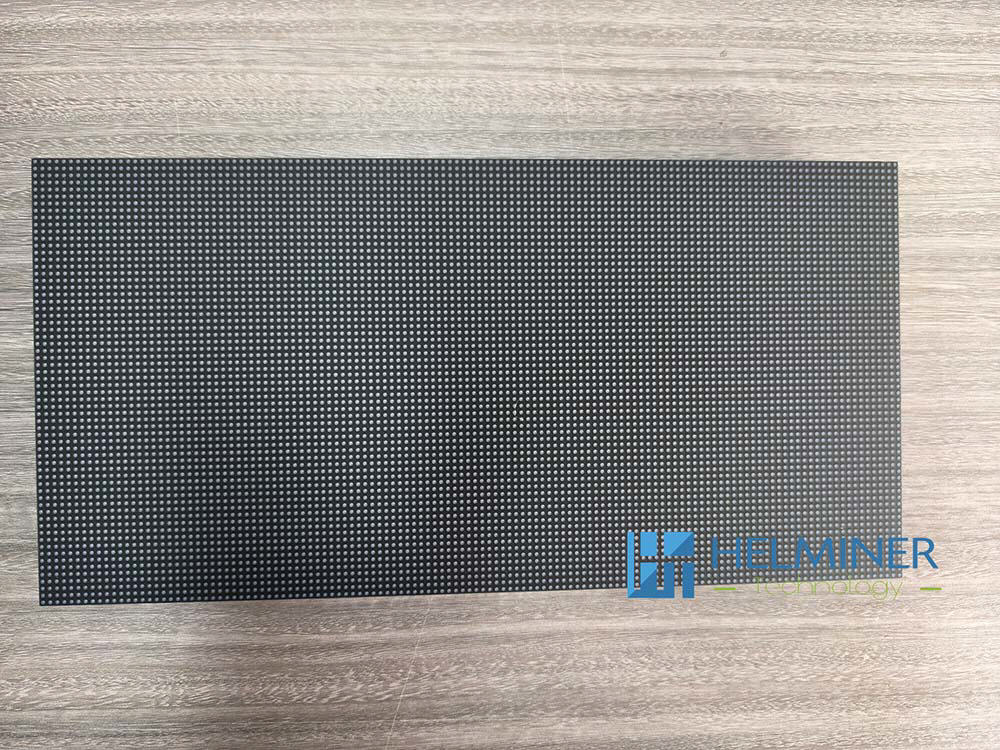

LED Module
20pcs GOB P2.5 LED MODULE

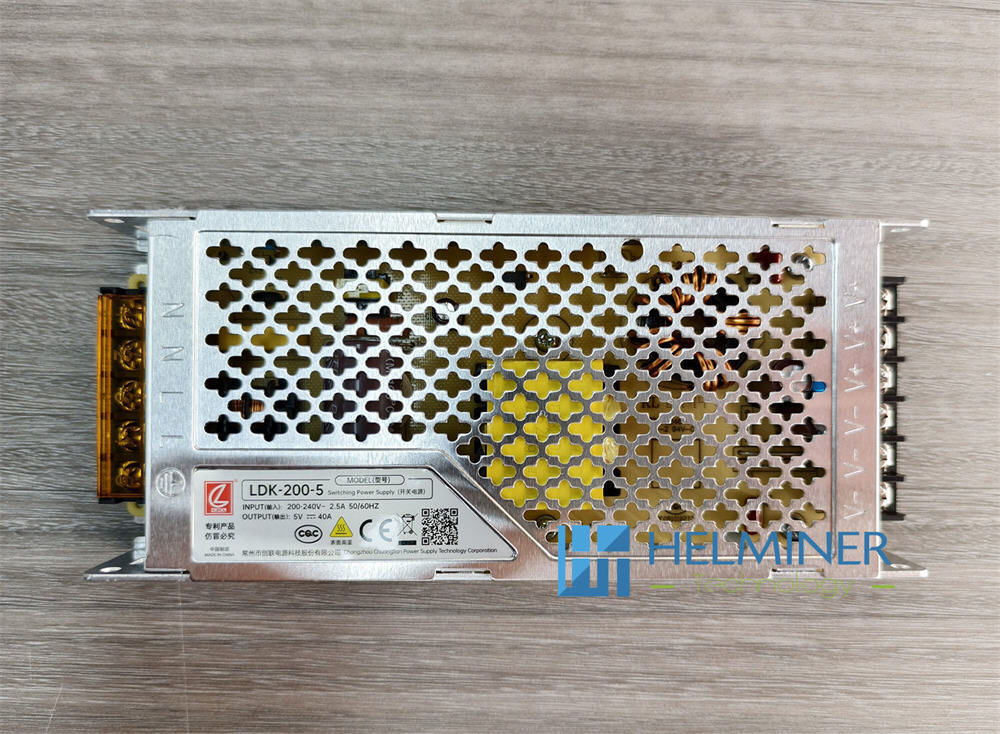

LED Wall power
6pcs 5V LED WALL power

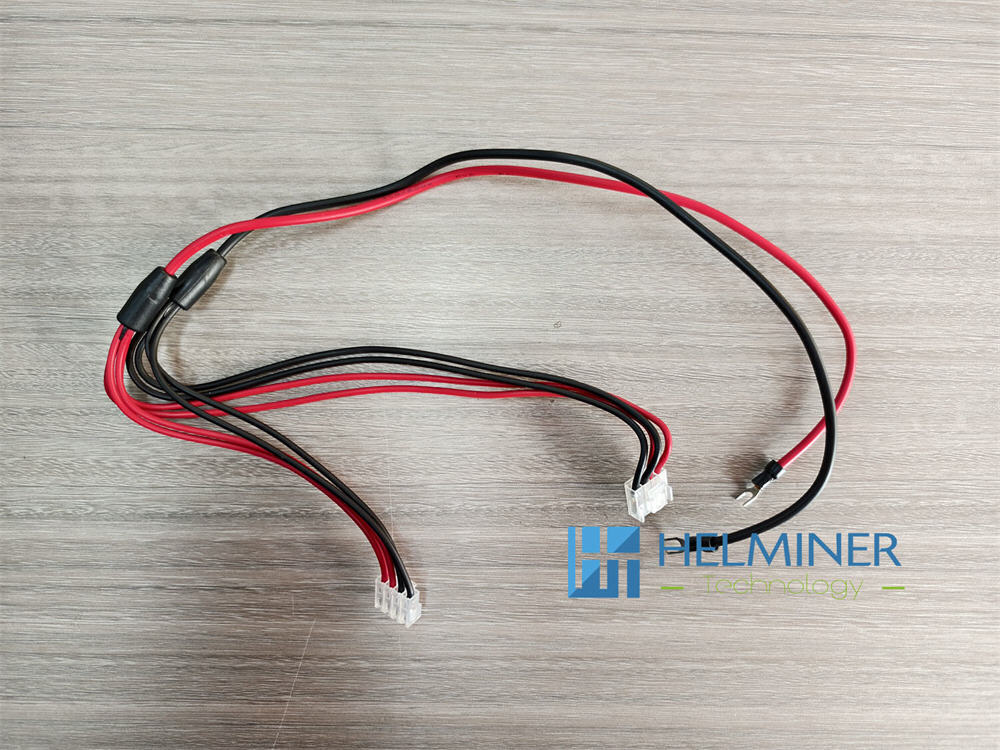

LED Module power cable
21pcs ( spare include ) Power cable

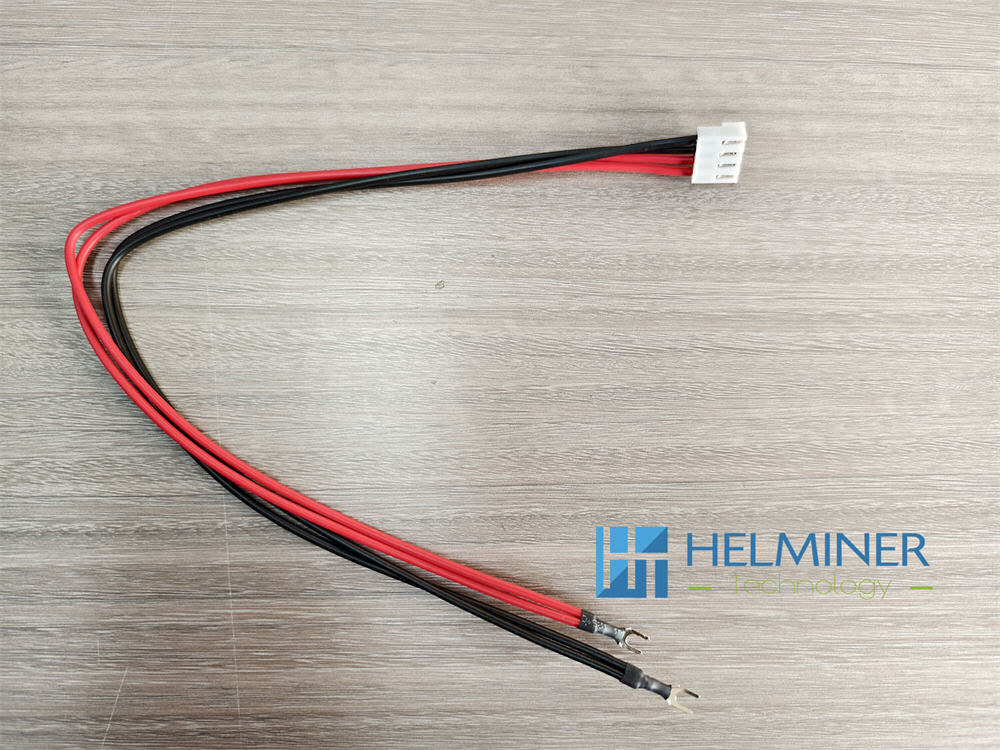

Data card power cable
5pcs Data card power cable

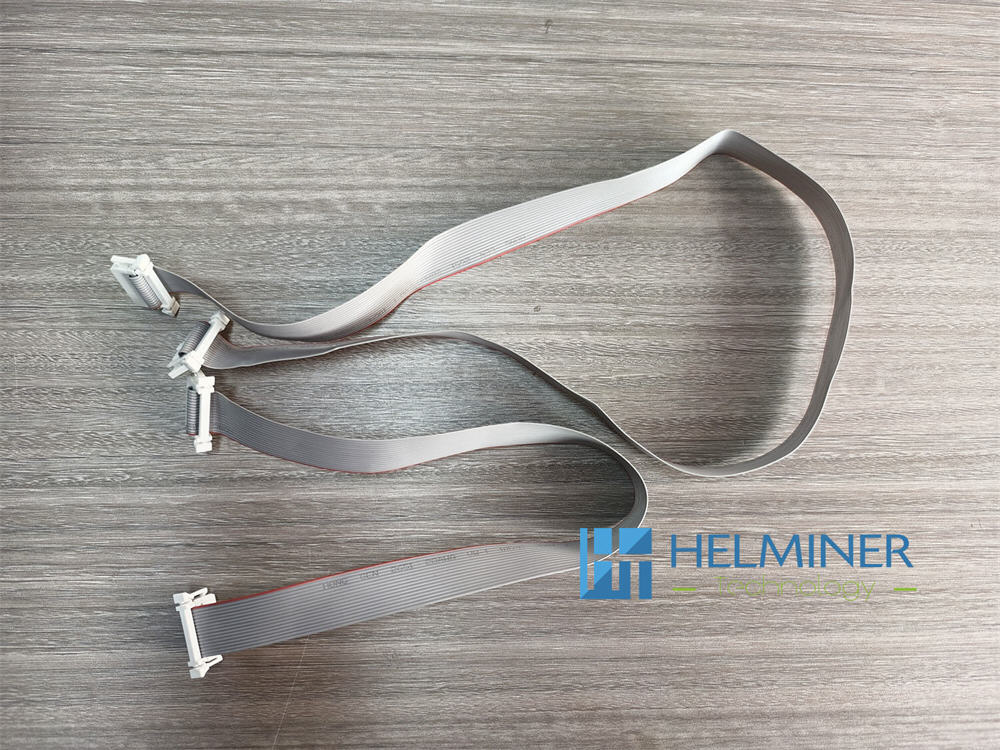

LED Module data cable
40cm 11 pcs + 70cm 11pcs 16P LED WALL Data cable

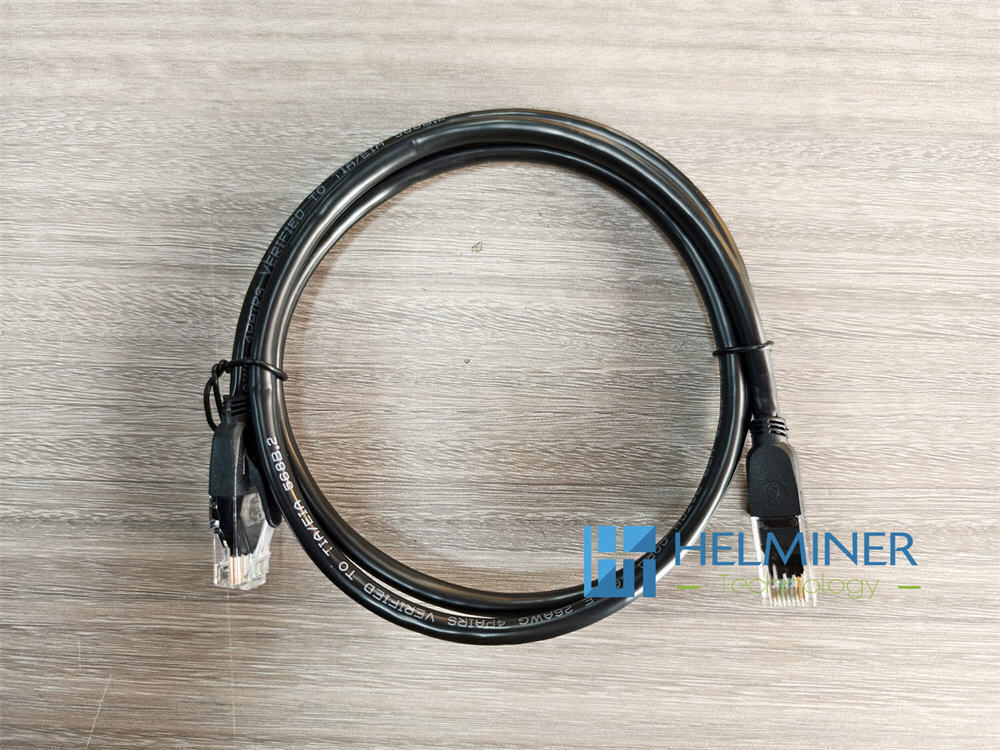

Receiver card ethenet
5pcs 1M LED WALL ETHENET CABLE

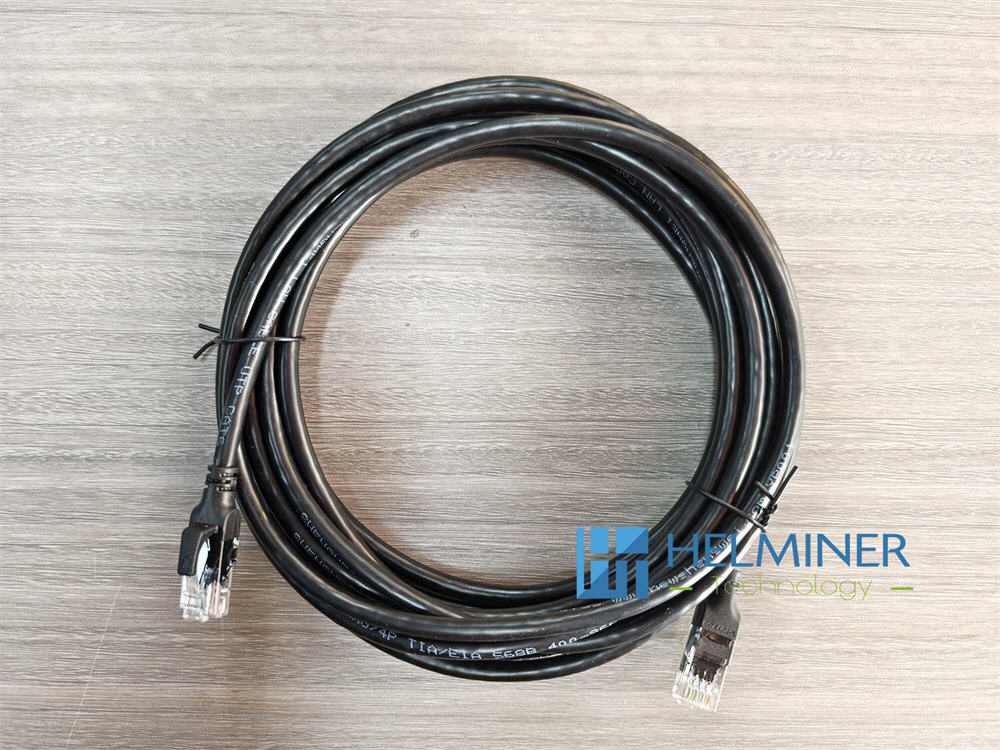

TB2 to Receiver card ethenet
1pcs 5M LED WALL ETHENET CABLE 5m

TB2 control cable
1pcs TB2 Control cable

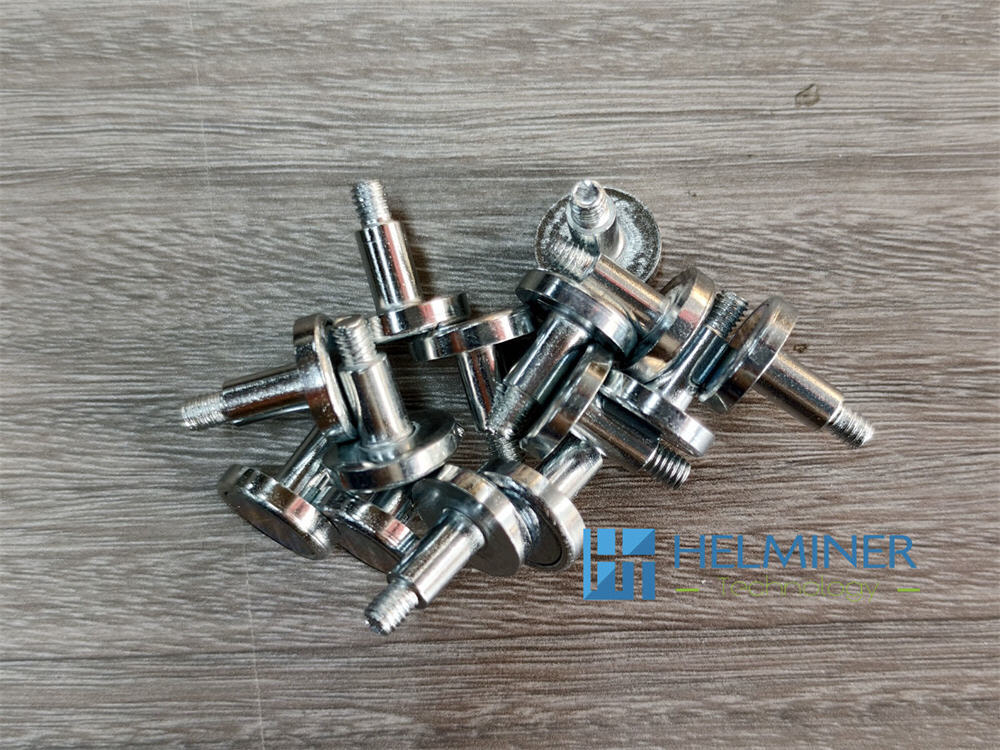

Magnet
4pcs / module LED WALL magnet

How to connect these part ?
Click here for more information
