Indoor LED Screen Structure

April, 2025 by Frank

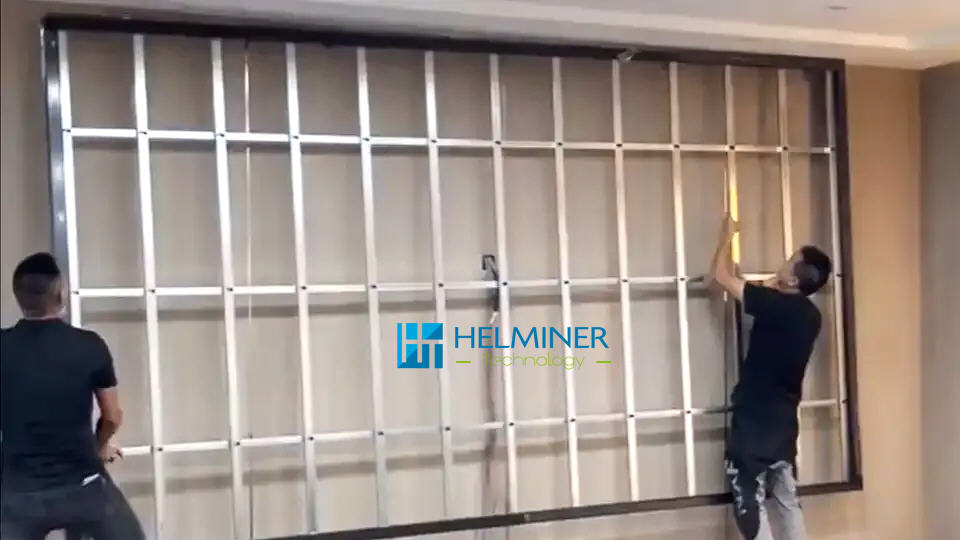

Indoor LED display screen, common installation support structure

Email : led.hgy@gmail.com

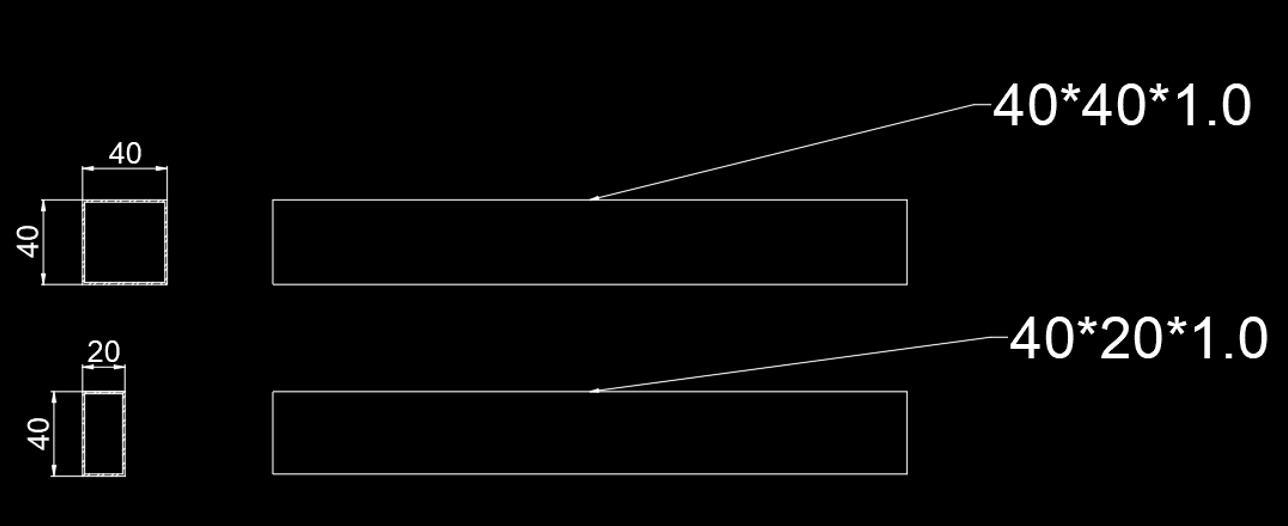

The supporting structure is made of galvanized square iron,
the part for installing the display screen is made of 40*20mm galvanized iron,
and the main supporting part is made of 40*40mm galvanized iron

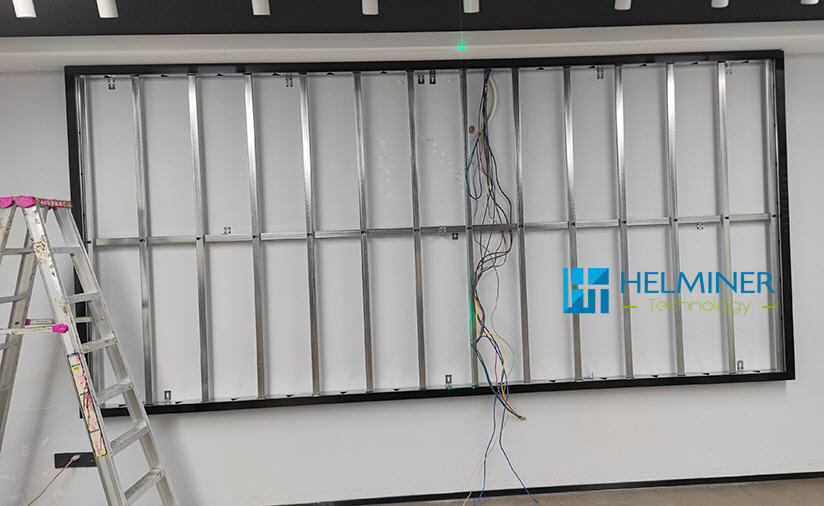

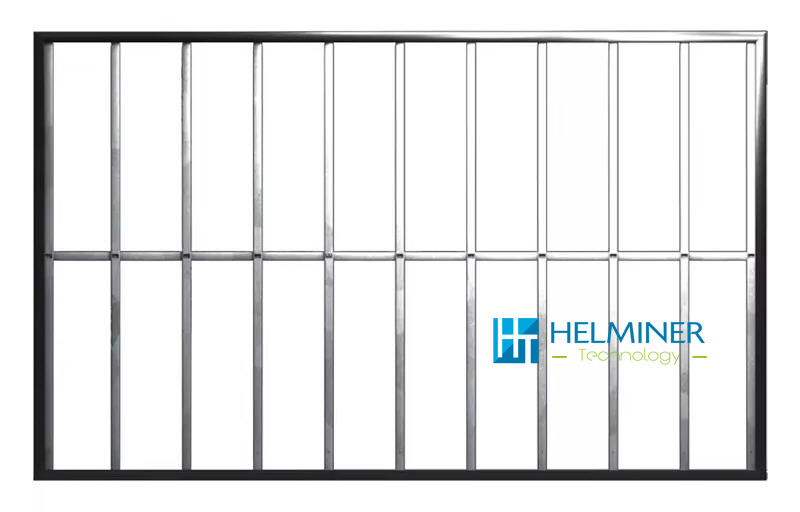

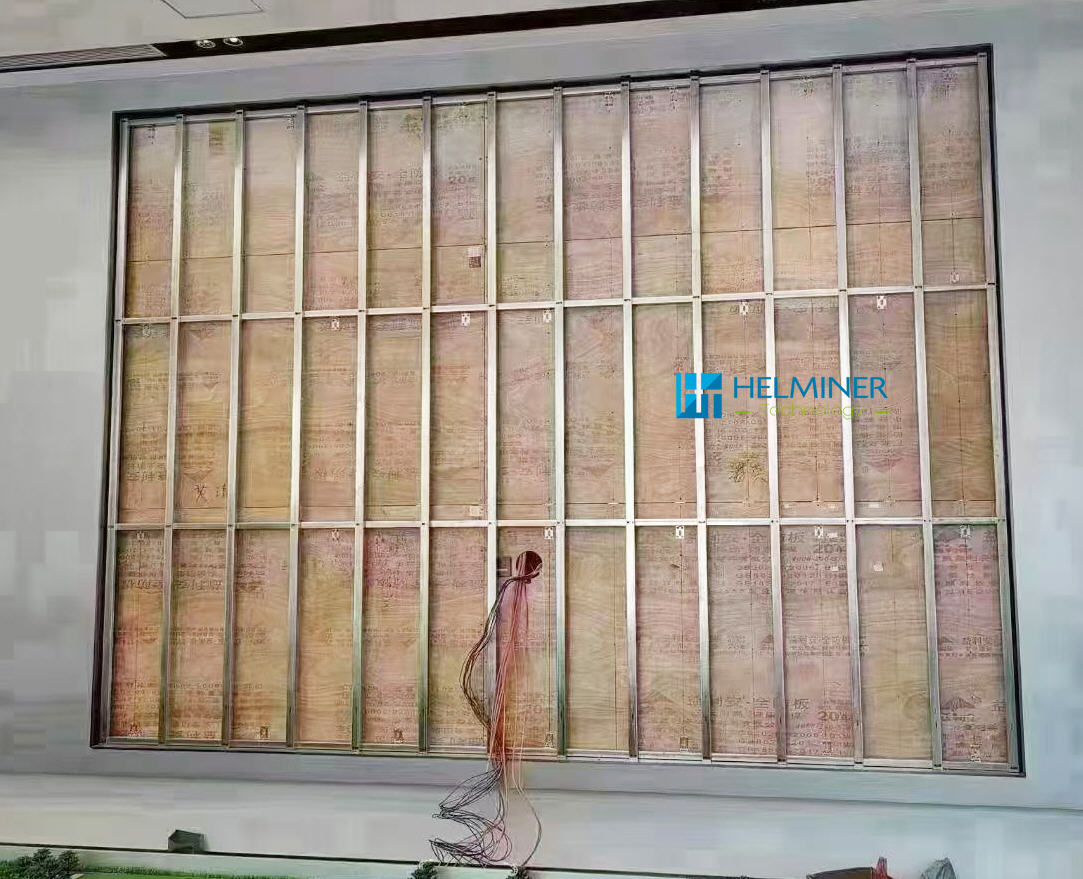

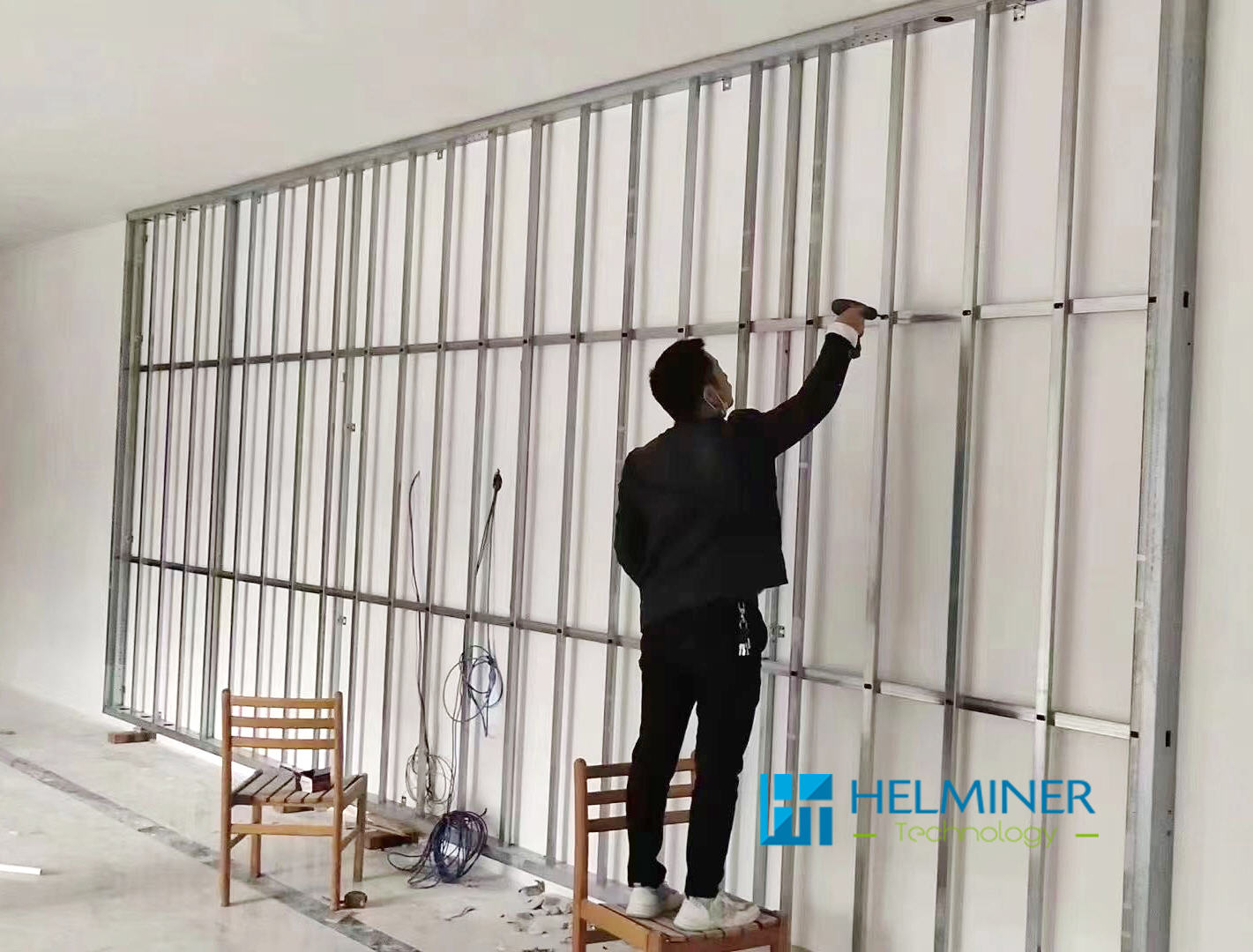

Common indoor structures

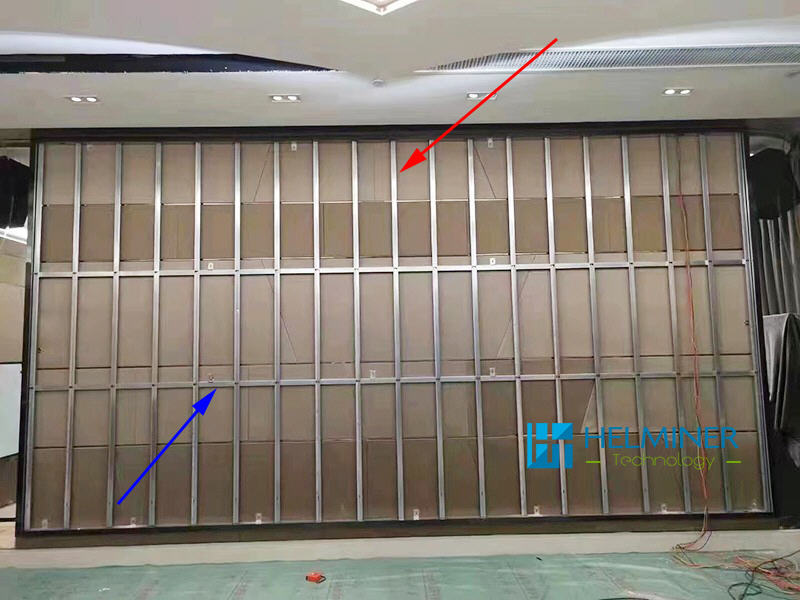

Red color is 40 x 20mm Rectangular galvanized iron
Blue color is 40 x 40mm Rectangular galvanized iron

LED Wall Screen , LED WAND ,
LED Wall Screen , LED WAND ,
LED Wall Screen , LED WAND ,
LED Wall Screen , LED WAND ,

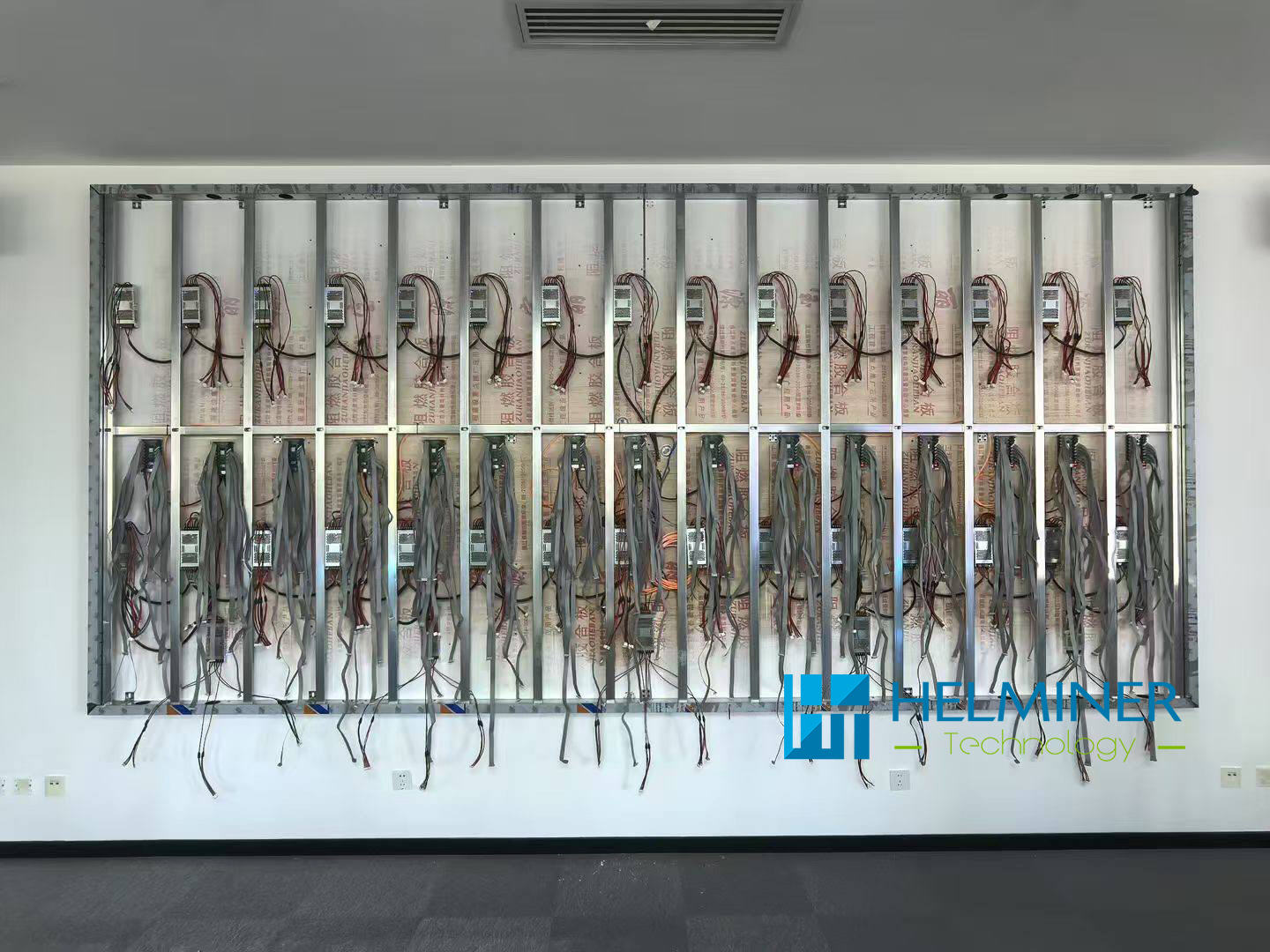

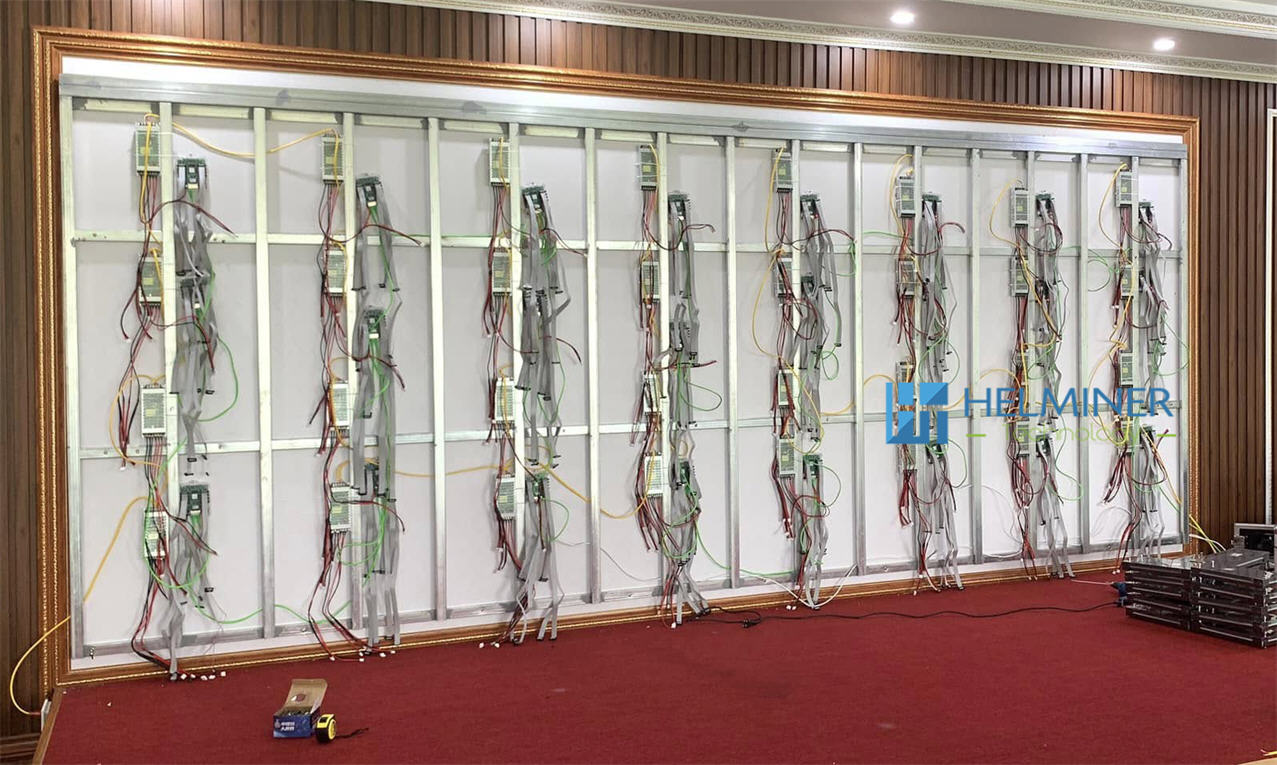

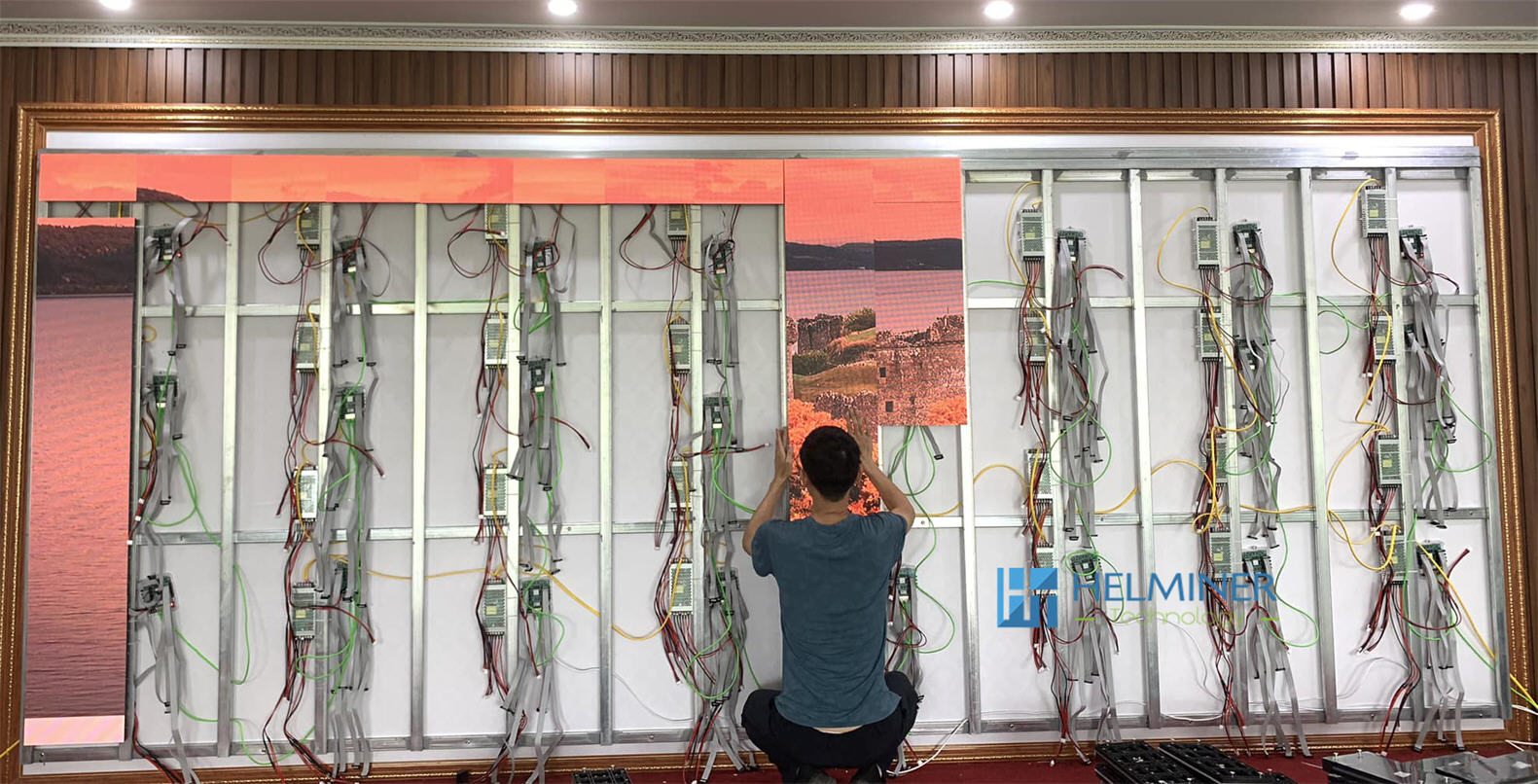

After installation is complete ( Power | Data Card )

LED Screen ,LED Videowände ,
LED Screen ,LED Videowände ,
LED Screen ,LED Videowände ,
LED Screen ,LED Videowände ,

Details to pay attention to when installing power and data cards
