175° BACK LIGHTING MODULES

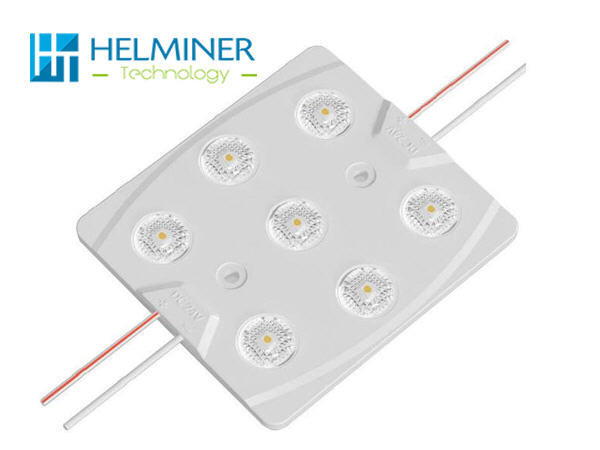

Teleline T7 7W 811lm,LED MODULES/TELELINE - For Lightboxes/TELELINE

Specification

Model	HM-E09/C
Voltage	24V DC
6 LED	7W
LM	900 LM /pcs
Color	White. OEM Yes
Waterproof	IP67 ABS injection Waterproof
Warranty	5 Years warranty. MOQ 500pcs

Signage LED Illumination LED Module

Same with Lucoled Plus BL71 modules offer a high quality and efficient backlit solution for lightboxes

Using the latest Top-Tier LED technology and high quality patented optics HELMINER LED Module, Same with BL71 offers industry leading efficacy and coverage. This not only reduces the amount of modules needed for an application, but also the overall power consumption.

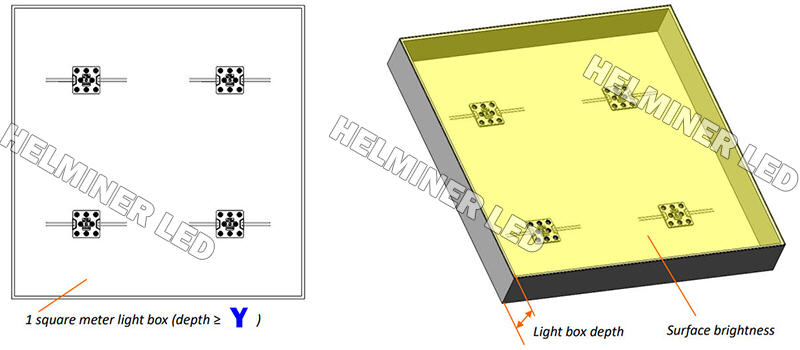

In a typical application of 250 mm deep
only 4 modules per square meter
are used at maximum wire spacing, making installation very fast and less labour intensive.
Using only 28 W per square meter also the number of power supplies needed is strongly reduced.

Lucoled Plus BL71 modules for light box
