OptiLens X led module,  replace GE Tetra MAX led module, 24V Prism led module

Tetra MAX LED signage modules

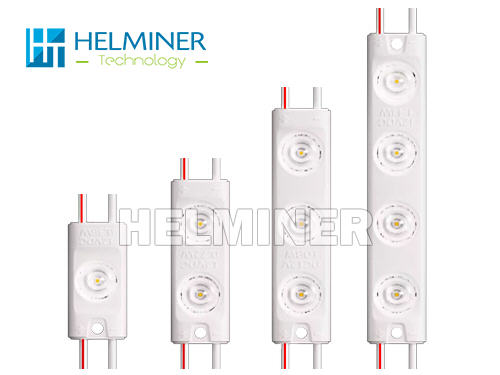

 24V Prism led module, High Efficiency LED module, Replace Tetra MAX  signage modules

Specification

Model HM-E08/A
Voltage 24V DC
LM / Power 170 LM /W , 0.36W /led
Color 6500K - 7000K
Waterproof IP67 LG ABS injection Waterproof
Warranty 7 Years warranty
Price
US $ * Promotion
Minimum order Qty 5000 pcs
Replace Tetra MAX LED signage modules
24V DC 170 LM /W, 2023 Innovation LED technology

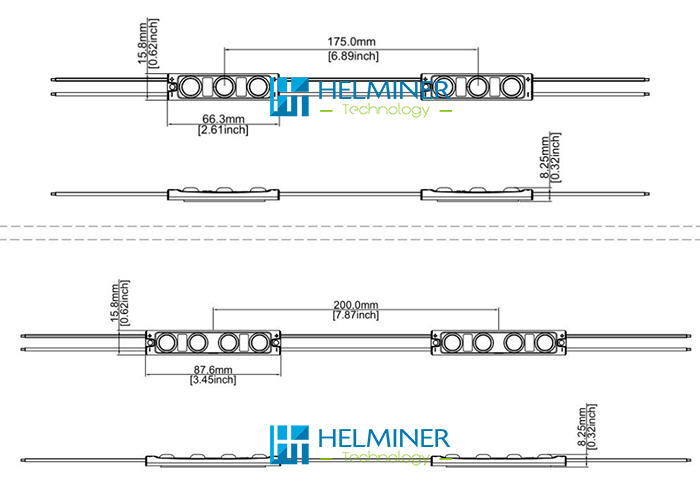

Product Dimension

Installation :

Replace Tetra MAX LED signage modules , Same quality , Best factory price

Specifications

TECHNICAL INFORMATION

  1. Reduced the led module size by 25%
  2. which brings our industry-leading 170 lm/W to a wider range of applications
  3. thanks to 2023 New design OptiLens, Tetra MAX LED module has an improved viewing angle of 175°
  4. ensuring perfectly uniform sign face illumination. Get more light for less with Tetra MAX LED Module

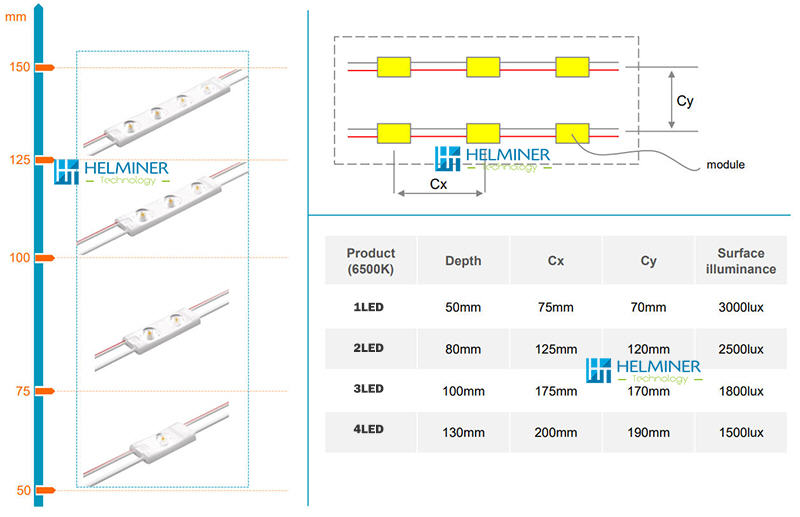

LIGHT DISTRIBUTION GRAPH

 Tetra MAX LED Module view angle
