Modulo Led SMD2835 / 1.5w OSRAM LED Module , Moduły LED  i  Taśmy LED,Módulos LED  para rotulación

1LED/2LED/3LED/4LED Module For Signs

 LED Module, Flexstreifen & Flächenmodule für die Werbeindustrie / Gewerbe / Wohnraum / Leuchtreklame

Specification

Model HM-C02( Power by OSRAM )
Voltage 12v DC
Option-A 1LED 0.5w 45LM/pcs
Option-B 2LED 1w 95LM/pcs
Option-C 3LED 1.5w 145LM/pcs
Option-D 4LED 2w 195LM/pcs
View Angle 170° PMMA Lens
Color 6500K White | OEM Yes
Certification CE RoHS
Waterproof IP67 Korean LG ABS Fire-proof material
Warranty 6 Years warranty. MOQ 5000pcs
Brand new design : Big emitting angle, Low light decay, IP67 (Korean LG ABS ), Big Promotion Now.

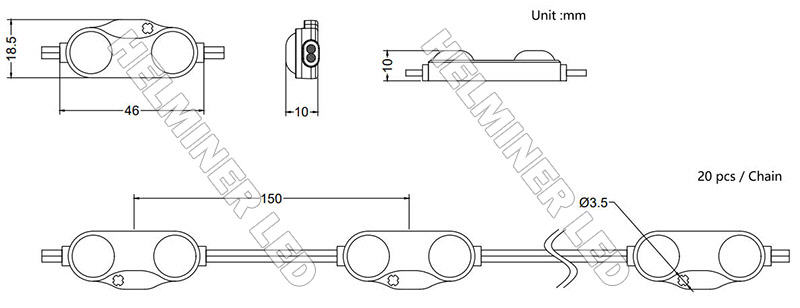

2 LED Injection LED Module:
 Backlighting Injection Module ,

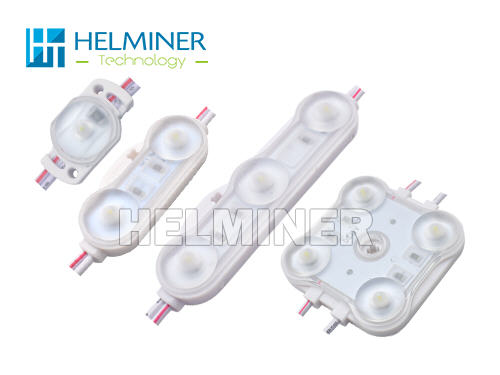

Injection LED Module : 1LED / 2LED / 3LED / 4LED

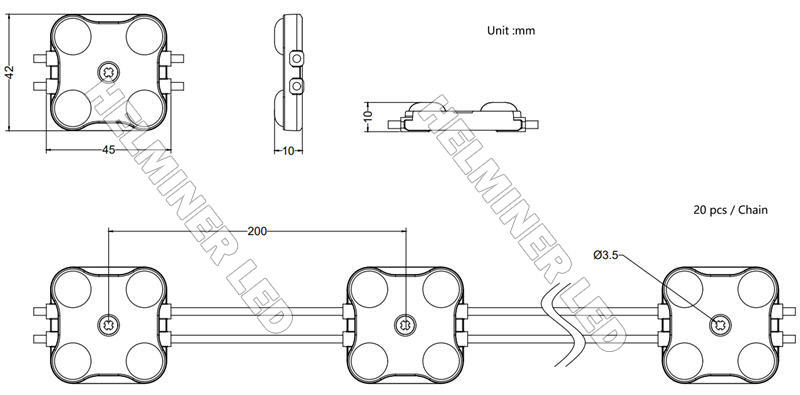

4 LED Injection LED Module :
  injection LED module | Module LED Lights for Lightbox‎

LED modules are perfect for sign illumination and light-box construction, they are IP67 rated so can be used outdoors. These Quad modules are supplied on a 3.5m string of 20 units, each module is 1.44w; The modules are joined with a two core cable and can be cut to size.

Power by OSRAM - 6 Years warranty | Epistar Also can be chosen. Direct Factory best price.

Features :
1. Adopted OSRAM / Epistar SMD 2835 Big chip, high lumen LED, low light decay
2. IP67 Korean LG ABS injection , Fire-proof material , Fire rating to UL94V-0.
3. 170° PMMA lens, big emitting angle.
4. Constant voltage technology, stable performance.
5. High light efficient, long life span 50,000 hours. 6 Years warranty

LED injection Module with lens, LED module for signs, LED backlit module, mini LED Module, LED signage module !

Application :

Adopts high brightness LED as a light source, no light spot, low decay and good consistency. It has injection outer cover, beautiful and unique appearance, protection rate IP67 and is easy to install.

  LED Backlighting Modules for LED Signage | OSRAM Injection Module ,
