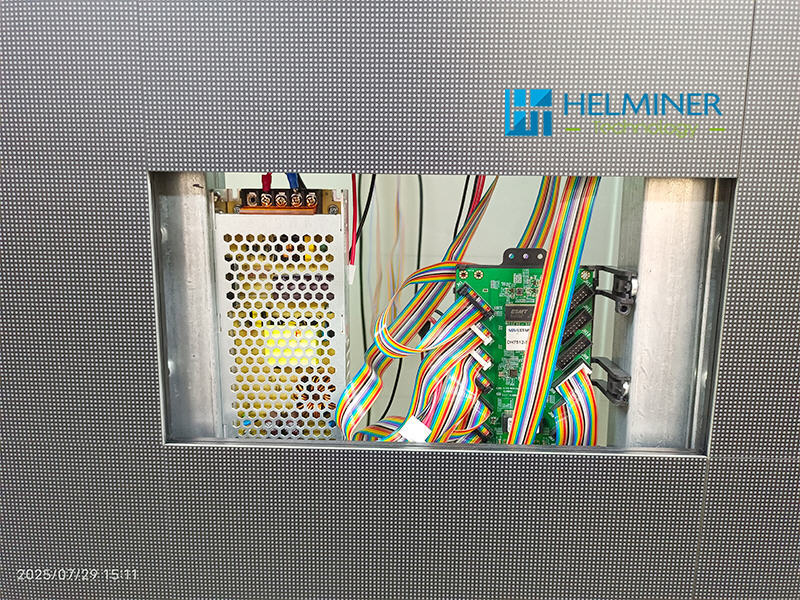

Power/Data Card of the LED Wall Installation location

April, 2025 by Frank

Non-cabinet installation, welding structure installation of the led wall

Email : led.hgy@gmail.com

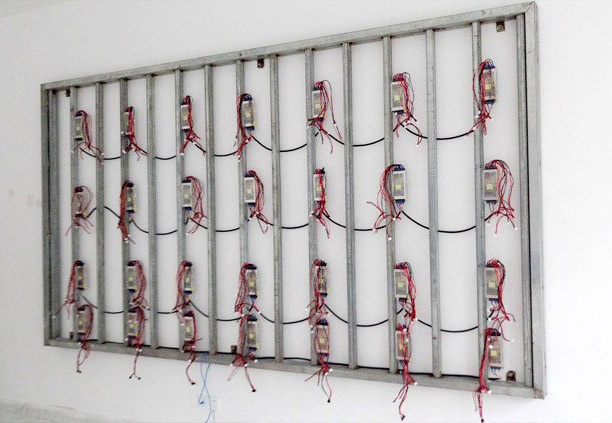

LED Wall Power Installation Detail

To ensure good ventilation and heat dissipation of the packaging

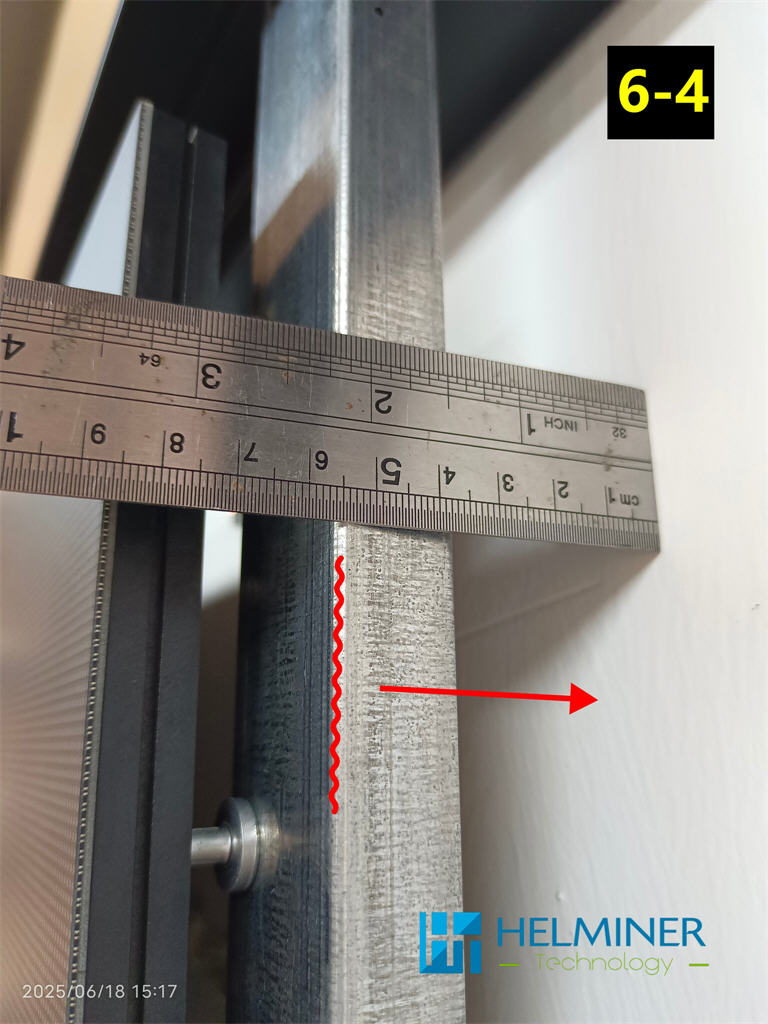

Minimum depth > 50mm

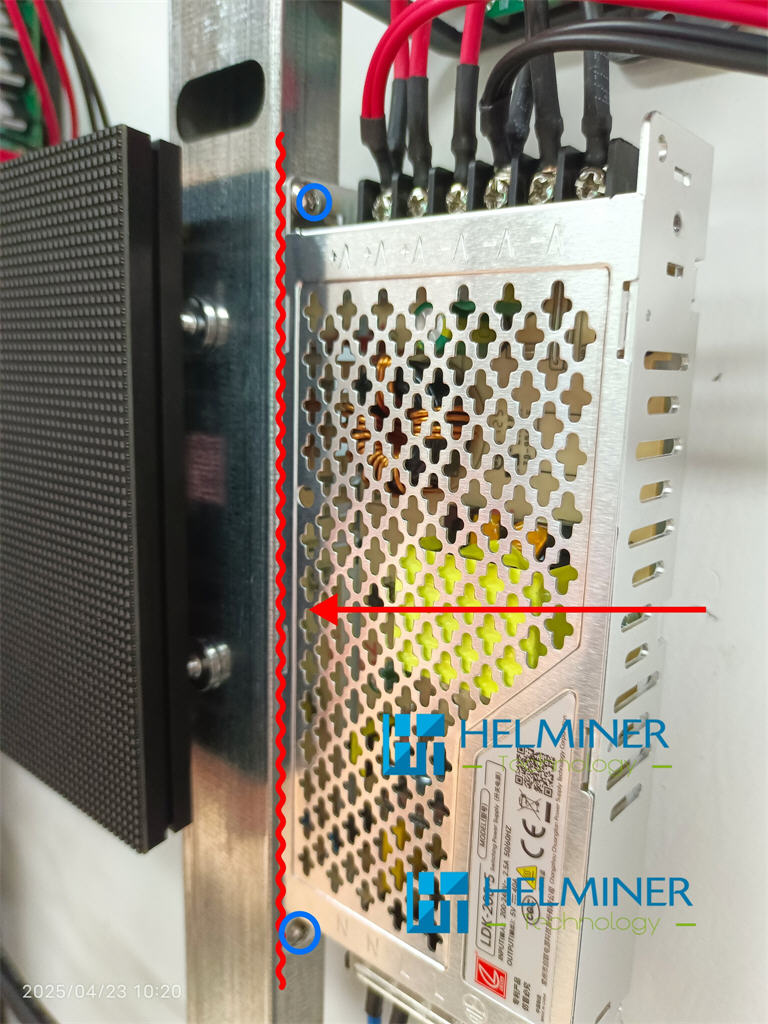

The installation position should not exceed the plane marked in red.

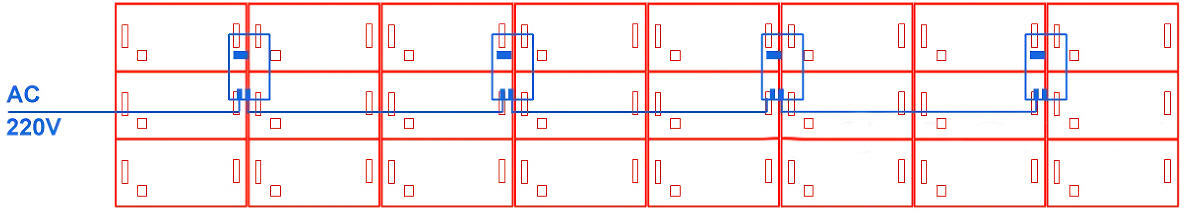

LED Wall Instalaltion Guide - LED Power Installation

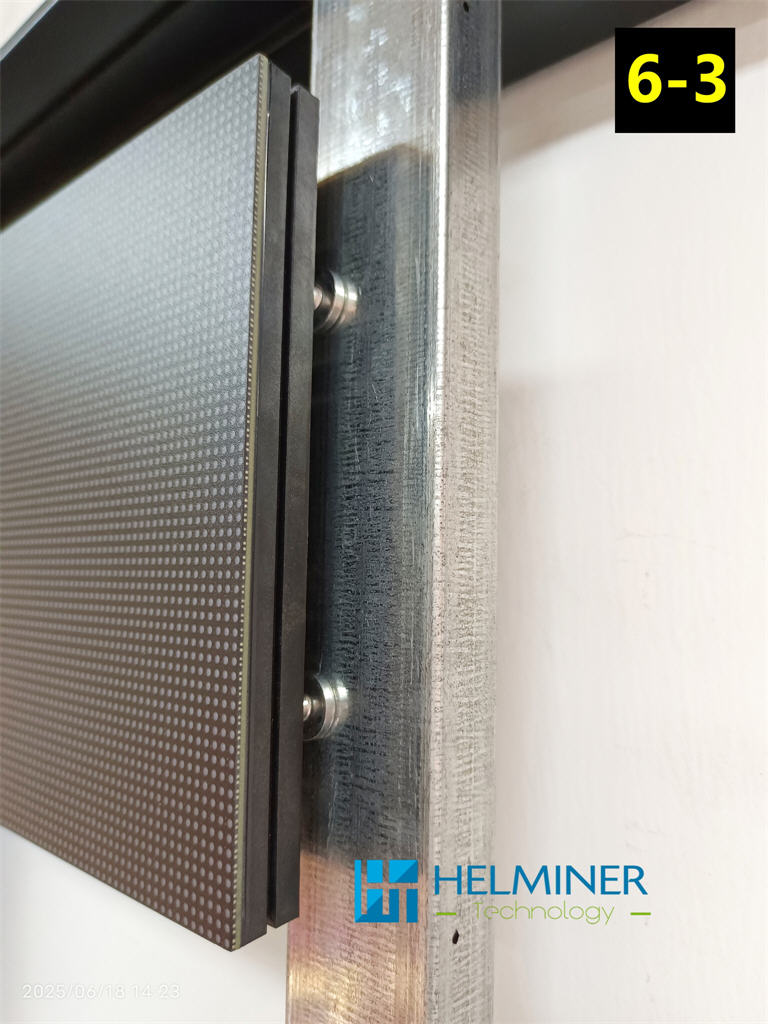

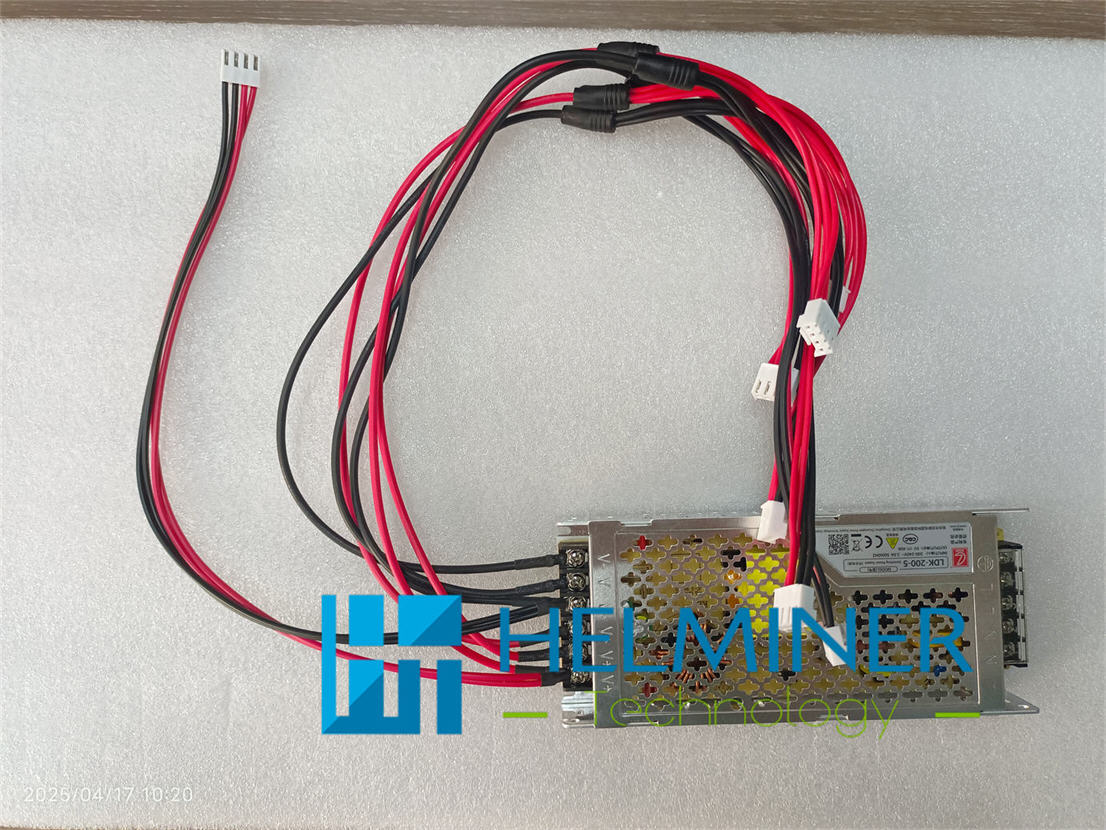

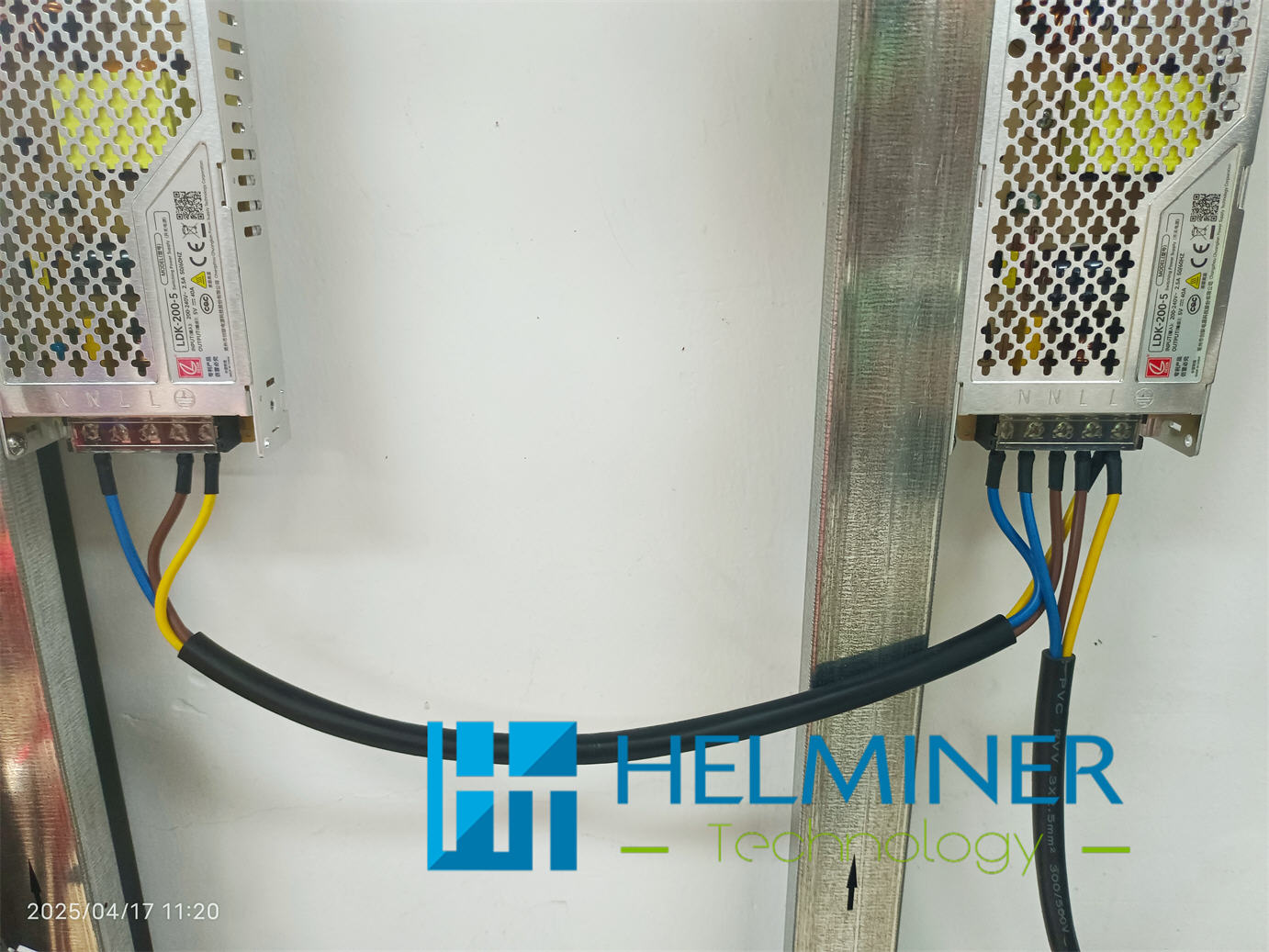

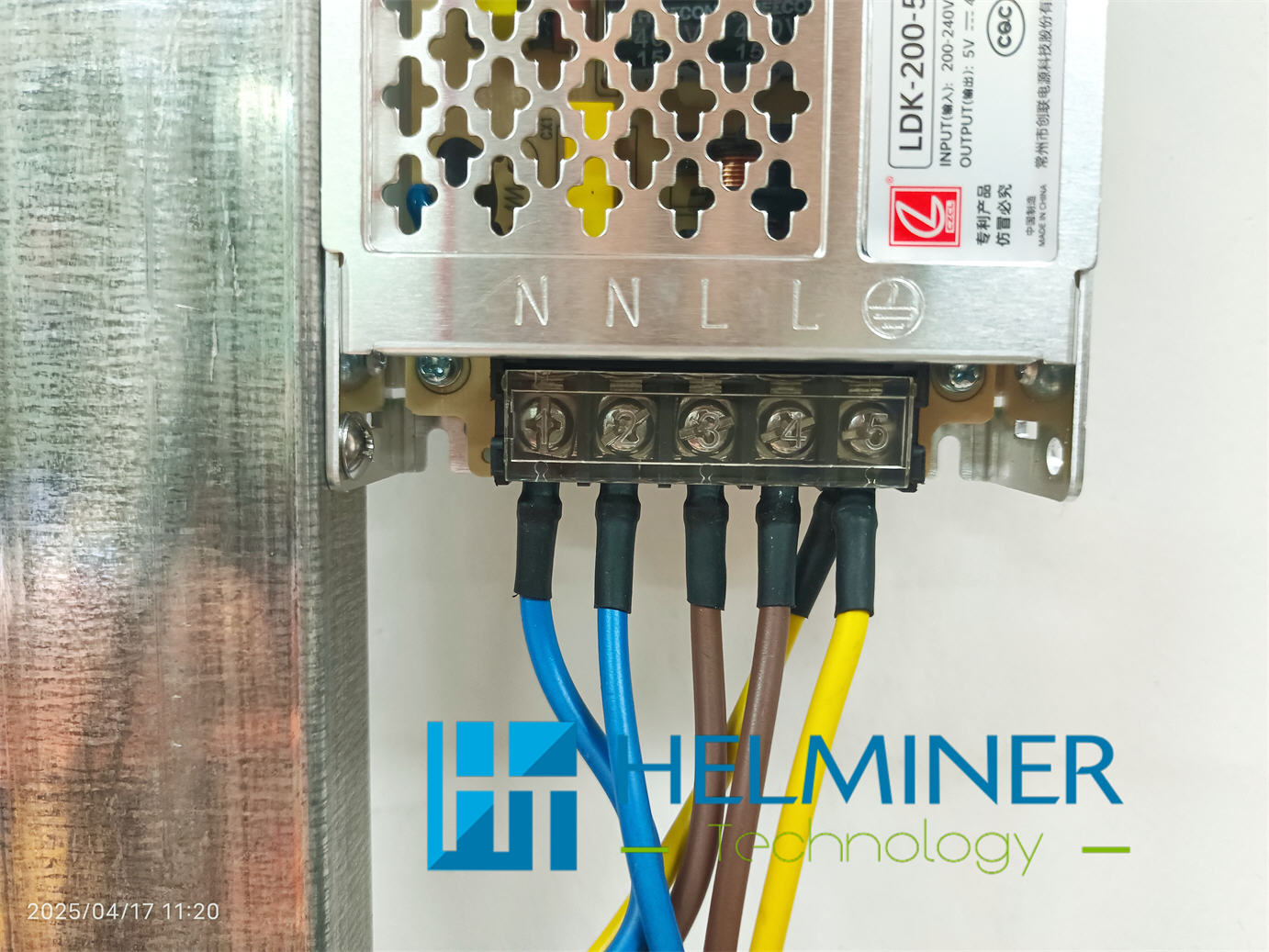

The power supply can be fixed directly to the side of the structure with self-tapping screws

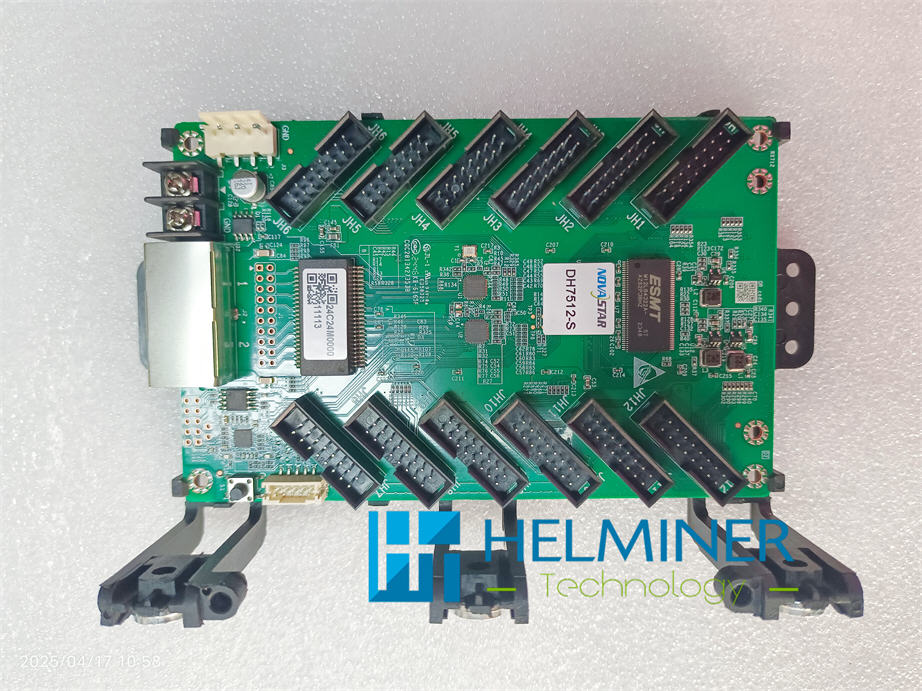

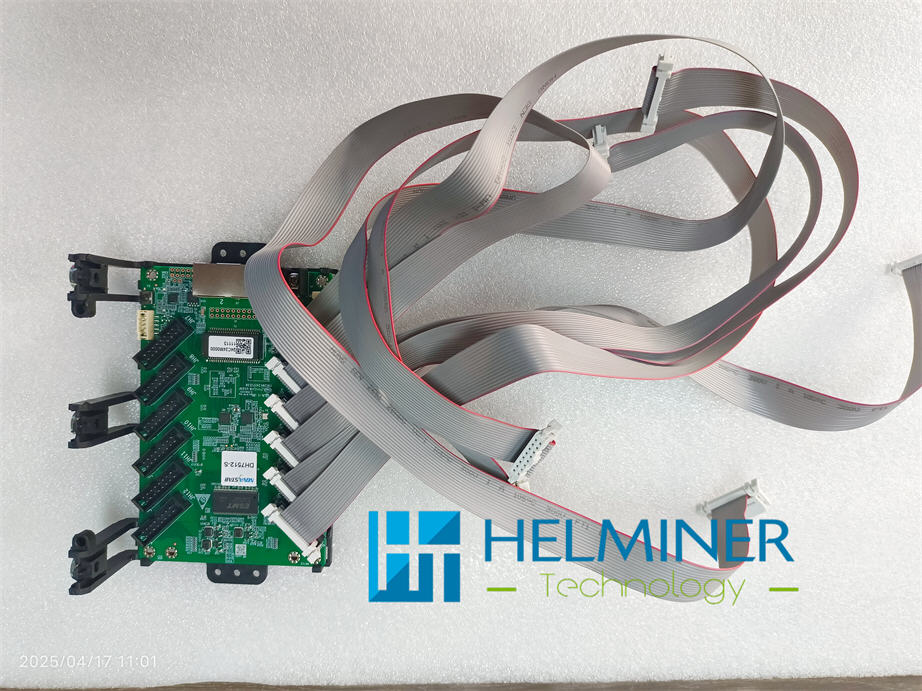

LED Wall Instalaltion Guide - NOVASTAR DH7512-S Data Card installation

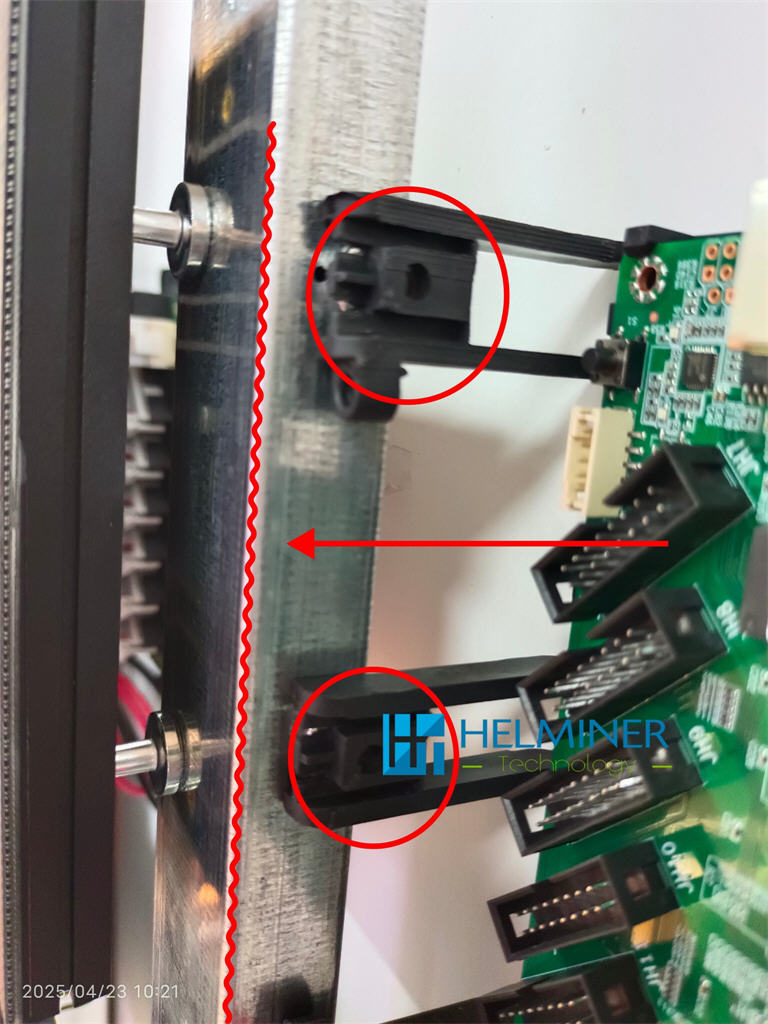

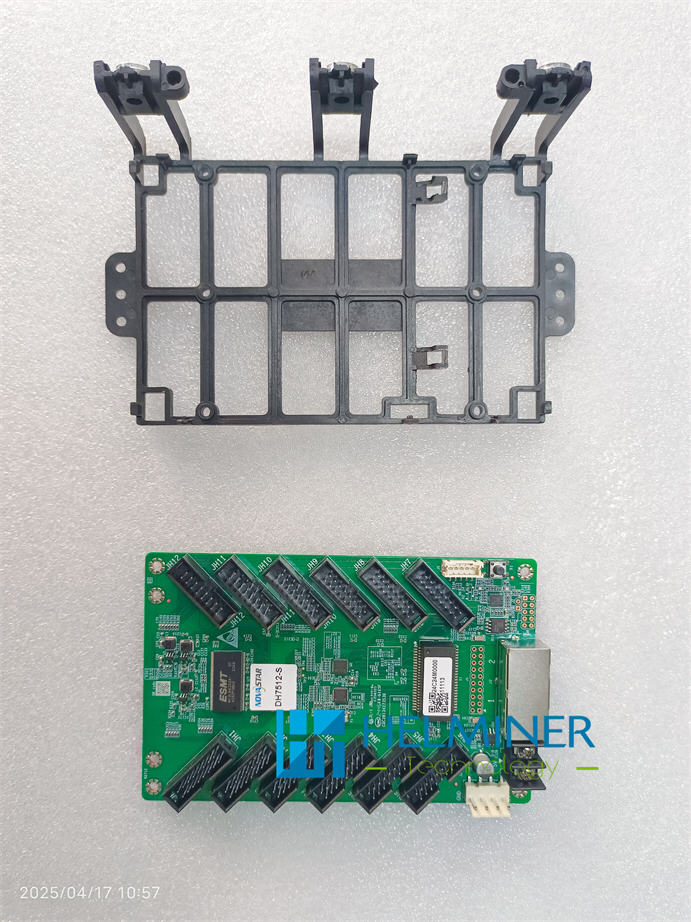

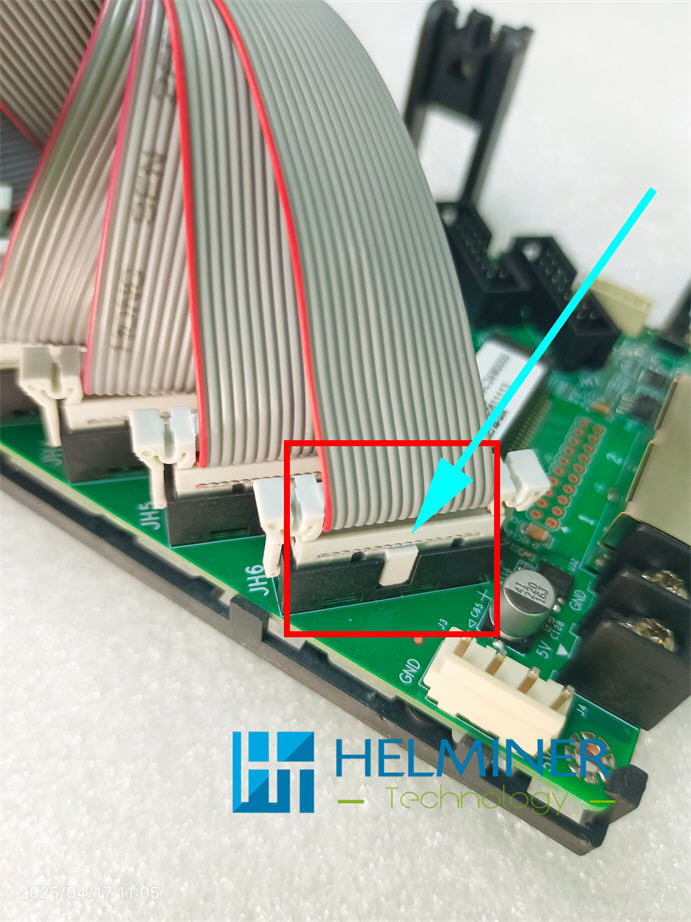

The data card is installed in the matching card holder and is adsorbed on the side of the support structure by magnets.
