Korean LG ABS + PMMA Lens

 1-5018 , Moduli LED per bifacciali , HELMINER LED


Model HM-D01/F
Voltage 12v DC
Drive Constant current drive
Epistar 3030 LED 1.44W 145LM/pcs
PMMA lens 15*45°
Color 6500K-7000K White Color | OEM Yes (3000K, 4000K)

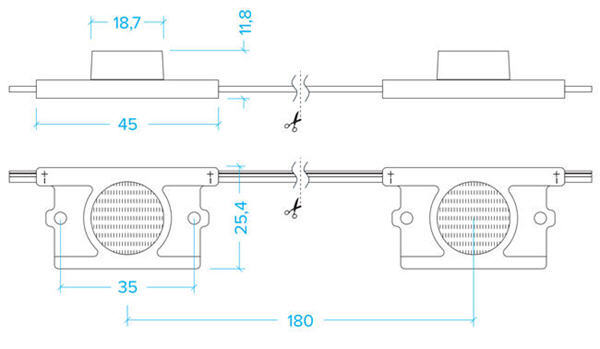

Dimension 45*25.4*11.8mm
Warranty 5 Years warranty. MOQ 3000pcs
Detail Information
Helminer LED : China LED Module OEM Manufacturer | Best Price , Low minimum order quantity

  hm1d Moduli Led, HM1LD - Hitechled

1-1508 1.4W Moduli LED per bifacciali, 2022 Brand New Design With Super Brightness

LED Module For Double / Single light box side installion

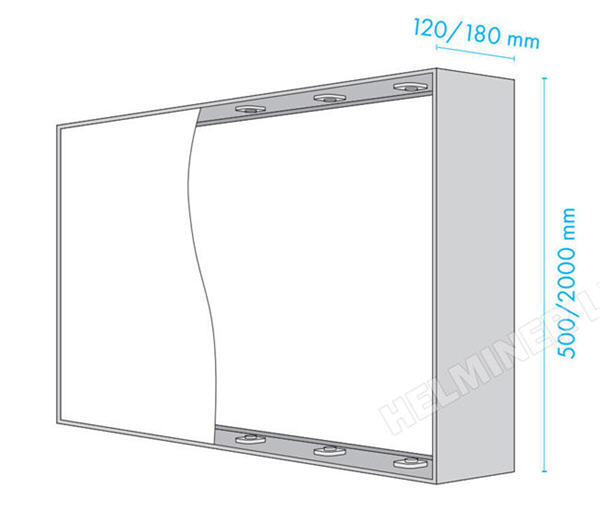

best for one-sded lightboxes (10-16 cm depth) and two-sided lightboxes (12-20 cm depth)
 Modulo LED per insegne bifacciali, HM1D Moduli LED , Helminer Moduli LED

Modulo LED per insegne bifacciali


LED Module Light Installation:

  • Best for over 10-20 cm depth Single and Double side Light box
  • Unique dual angle optical lens design, 15*45 degree, Optimized for use in Double Sided Light box lighting
  • Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.
  • PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.
  • Ensure the product stable performance, long life, good brightness uniformity.
  • Installed on the box bottom, back glue scheduled, fixed with screw.
