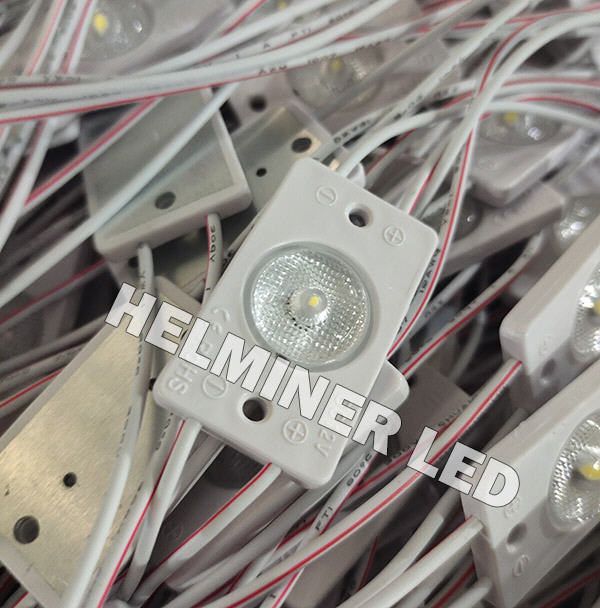

1LED High Power LED Module
Specification
| Model | HM-D05/D |
| Voltage | 12v DC |
| LED by EPISTAR 3030 | 145lm/pcs 1.44w 200lm 2w |

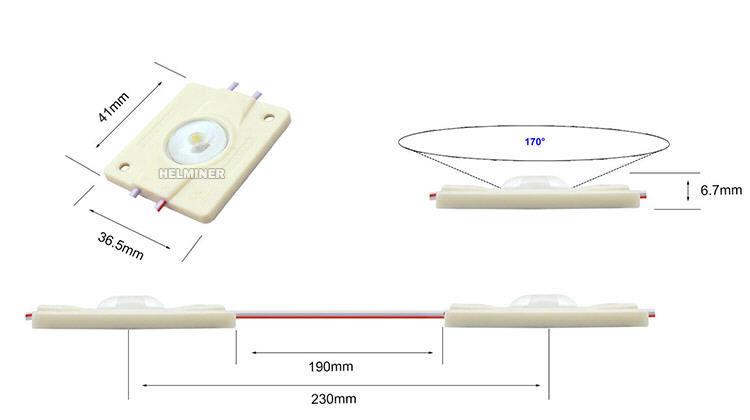

| View Angle | 170° |
| Color | 6500K White / (OEM Yes) |
| Certification | CE RoHS |
| Waterproof | KOREAN LG ABS Fire-proof material IP67 Waterproof |
| MOQ | 3000PCS |
| Warranty | 5 Years warranty. |
20pcs / Gorup . Each LED can be cut !
- 2020 New Updating :
- Lens : PMMA 170° lens. Not PC lens
- Drive can be constant current drive / constant voltage drive

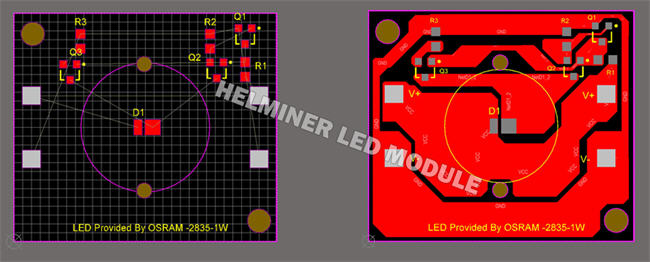

- LED Source by Epistar SMD3030 Big chips / OSRAM 2835 Chips
- Color : normal is 6500k, 3000k, 4000k, also can be chosen.
Best for 80-250mm single light box

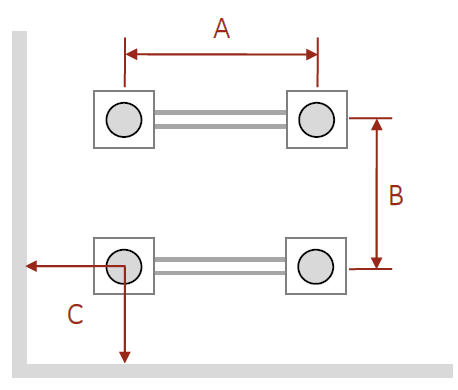

Minimum modules positioning:
| Box thickness | A | B | C | |
|---|---|---|---|---|
| 80 | 130 | 130 | 40 |  |
| 100 | 200 | 200 | 45 | |
| 150 | 230 | 300 | 80 | |
| 200 | 230 | 350 | 100 | |
| 250 | 230 | 350 | 130 |
Benefit
· LED module with special Lens 170 ˚, the particular light diffusion. makes it suitable for signs and boxed leters with a thickness from 80 to 250 mm.
· The excellent heat dissipation performed by the module aluminum.
base reduces light degradation and chromatic deviation.
· Module with integrated current stabilizer.
· Production date printed inside of module for the traceability.
· The fixing holes and the double-sided tape allow a quick installation.
· Fully encapsulated LED module.
There also have 1w, 1.2w small high power led module can be chosen.
Click the follow button to get more information .
Here is our other hot selling LED module
- Edge LED Module For Double light box
- 175° 160 LM/w, 110 LM/w, 2022 Innovation LED Modules
- Email our sale manager right now : Emma.Helminer@gmail.com

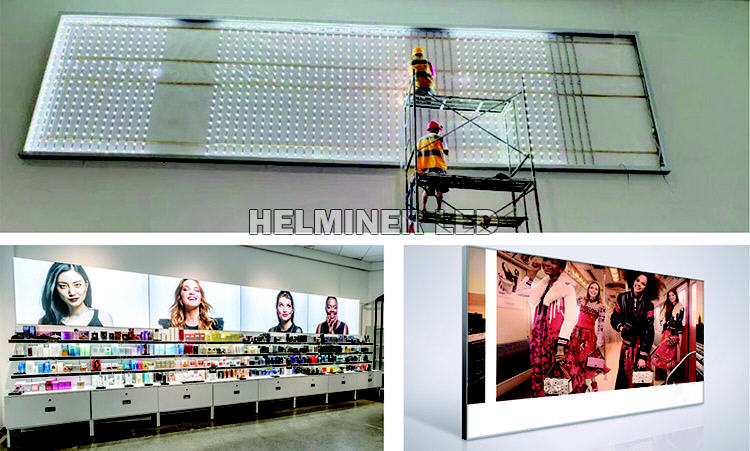

Led module for advertising light box &channel letter | Led module for shop banner
All of our led modules delivered from ，Helminer LED Technology are 100% aging-tested before release and CE-certified, RoHS compliant.
